Perforated Noise Reduction Barrier Fences
Perforated Noise Reduction Barrier Fences
Perforated Noise Reduction Barrier Fences
Perforated Noise Reduction Barrier Fences
Perforated Noise Reduction Barrier Fences
Perforated Noise Reduction Barrier Fences
Perforated Noise Reduction Barrier Fences
Perforated Noise Reduction Barrier Fences
Perforated Noise Reduction Barrier Fences
Perforated Noise Reduction Barrier Fences
Perforated Noise Reduction Barrier Fences

Perforated Noise Reduction Barrier Fences

Model NO.
XC-NBPM004
Price:
US $ 35.00-70.00 / meters
Delivery:
EXW,FOB,CIF,C&F
Minimum order quantity:
100 meters
Supply Ability:
450 meters / Day
Country of Origin:
Guangzhou,China
Stock Time:
10-20 Days
Noise reduction barrier fence is mainly used as a noise reduction of road, highway, viaduct and other noise sources. It refers to a kind of barrier set at the edge of road or railway in order to reduce the impact of vehicles' noise on residents nearby.
Quantity:
Product Description
Acoustic barrier panel is mainly used as a noise reduction of road, highway, viaduct and other noise sources. It refers to a kind of barrier set at the edge of road or railway in order to reduce the impact of vehicles' noise on residents nearby.A kind of facility is established between sound sources and recipients to let sound transmisson have a remarkable additional reduction, thus alleviating the bad influence of noise on areas where recipients are in; this kind of facility is Acoustic Barrier For Highway.

Specifications: Specification of Sound Barriers SizeHeight(mm)2000, 2500, 3000, 3500, 4000 Post distance(mm)1000, 2000, 2500, 3000 Acoustical boardMaterialGalvanized steel sheet, aluminum sheet PC board, acrylic board Hole typeLouver hole, Microporous Size(mm)500 x 2000 x 80, 500 x 2000 x 100, 500 x 1200 x 120 Surface treatmentElectrostatic spraying ColorGreen, blue, white, gray Sound absorbing materialGlass wool24kg/m3, 30kg/m3, 48kg/m3 Package of glass woolGlass fibre cloth, PET waterproof and high temperature resistant film H postSize(mm)100 x 100 x 6 x 8, 125 x 125 x 6.5 x 9, 150 x 150 x 7 x 10, 175 x 175 x 7.5 x 11 Height2-6 meters, the most height can be 12 meters Flange base(mm)250 x 250, 300 x 300, 350 x 350, 400 x 400, 500 x 500 Thickness: 12, 14, 20 and so on MaterialQ235 Surface treatmentGalvanized,Electrostatic spraying ColorGreen, blue, white, gray Installation accessoriesGusset plate, post cap, V shape clamp spring, self-tapping screw

Specifications:

Specification of Sound Barriers
SizeHeight(mm)2000, 2500, 3000, 3500, 4000
Post distance(mm)1000, 2000, 2500, 3000

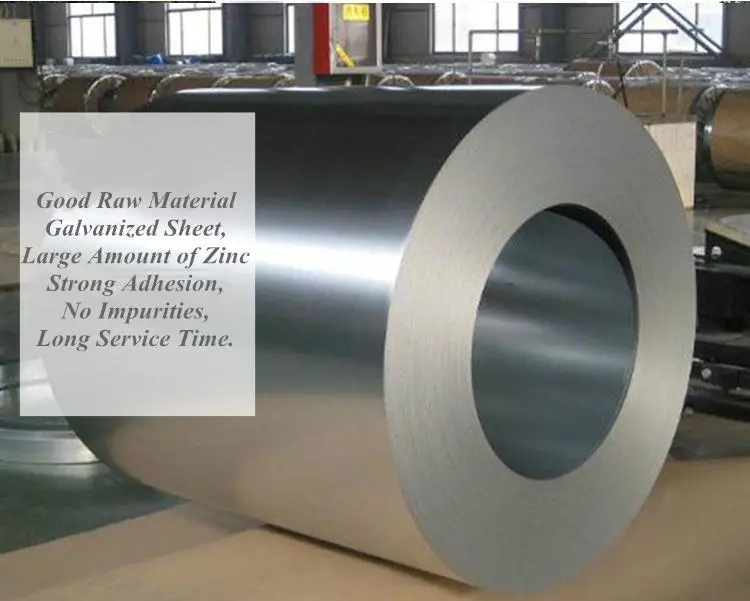

Acoustical boardMaterialGalvanized steel sheet, aluminum sheet
PC board, acrylic board
Hole typeLouver hole, Microporous
Size(mm)500 x 2000 x 80, 500 x 2000 x 100, 500 x 1200 x 120
Surface treatmentElectrostatic spraying
ColorGreen, blue, white, gray

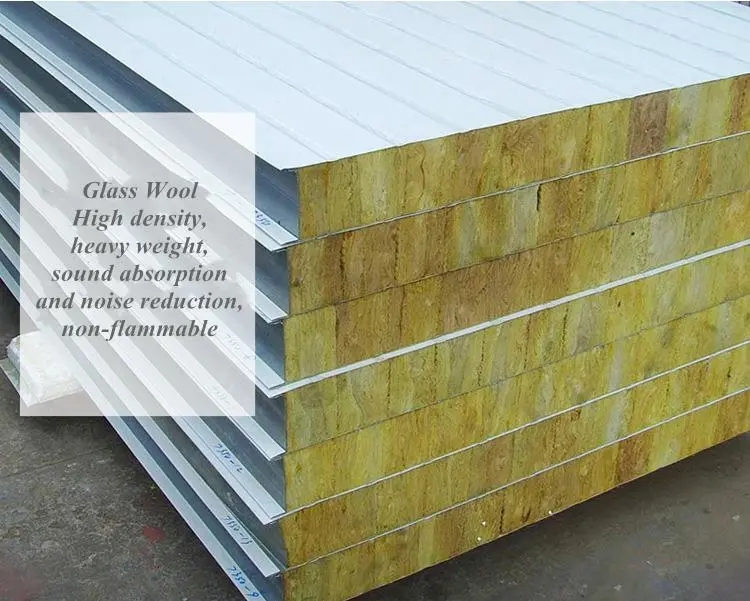

Sound absorbing materialGlass wool24kg/m3, 30kg/m3, 48kg/m3
Package of glass woolGlass fibre cloth, PET waterproof and high temperature resistant film

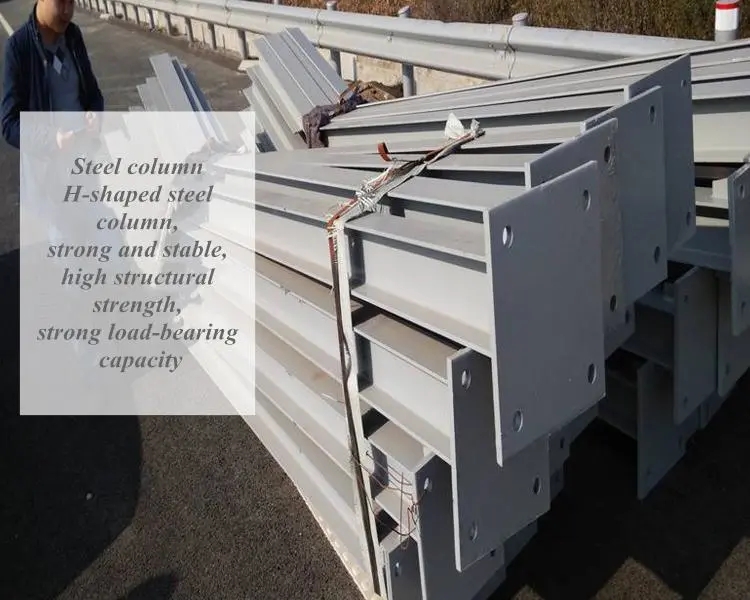

H postSize(mm)100 x 100 x 6 x 8, 125 x 125 x 6.5 x 9, 150 x 150 x 7 x 10, 175 x 175 x 7.5 x 11
Height2-6 meters, the most height can be 12 meters
Flange base(mm)250 x 250, 300 x 300, 350 x 350, 400 x 400, 500 x 500
Thickness: 12, 14, 20 and so on
MaterialQ235
Surface treatmentGalvanized,Electrostatic spraying
ColorGreen, blue, white, gray
Installation accessoriesGusset plate, post cap, V shape clamp spring, self-tapping screw

Specifications: Specification of Sound Barriers SizeHeight(mm)2000, 2500, 3000, 3500, 4000 Post distance(mm)1000, 2000, 2500, 3000 Acoustical boardMaterialGalvanized steel sheet, aluminum sheet PC board, acrylic board Hole typeLouver hole, Microporous Size(mm)500 x 2000 x 80, 500 x 2000 x 100, 500 x 1200 x 120 Surface treatmentElectrostatic spraying ColorGreen, blue, white, gray Sound absorbing materialGlass wool24kg/m3, 30kg/m3, 48kg/m3 Package of glass woolGlass fibre cloth, PET waterproof and high temperature resistant film H postSize(mm)100 x 100 x 6 x 8, 125 x 125 x 6.5 x 9, 150 x 150 x 7 x 10, 175 x 175 x 7.5 x 11 Height2-6 meters, the most height can be 12 meters Flange base(mm)250 x 250, 300 x 300, 350 x 350, 400 x 400, 500 x 500 Thickness: 12, 14, 20 and so on MaterialQ235 Surface treatmentGalvanized,Electrostatic spraying ColorGreen, blue, white, gray Installation accessoriesGusset plate, post cap, V shape clamp spring, self-tapping screw
Specifications: Specification of Sound Barriers SizeHeight(mm)2000, 2500, 3000, 3500, 4000 Post distance(mm)1000, 2000, 2500, 3000 Acoustical boardMaterialGalvanized steel sheet, aluminum sheet PC board, acrylic board Hole typeLouver hole, Microporous Size(mm)500 x 2000 x 80, 500 x 2000 x 100, 500 x 1200 x 120 Surface treatmentElectrostatic spraying ColorGreen, blue, white, gray Sound absorbing materialGlass wool24kg/m3, 30kg/m3, 48kg/m3 Package of glass woolGlass fibre cloth, PET waterproof and high temperature resistant film H postSize(mm)100 x 100 x 6 x 8, 125 x 125 x 6.5 x 9, 150 x 150 x 7 x 10, 175 x 175 x 7.5 x 11 Height2-6 meters, the most height can be 12 meters Flange base(mm)250 x 250, 300 x 300, 350 x 350, 400 x 400, 500 x 500 Thickness: 12, 14, 20 and so on MaterialQ235 Surface treatmentGalvanized,Electrostatic spraying ColorGreen, blue, white, gray Installation accessoriesGusset plate, post cap, V shape clamp spring, self-tapping screw
Specifications: Specification of Sound Barriers SizeHeight(mm)2000, 2500, 3000, 3500, 4000 Post distance(mm)1000, 2000, 2500, 3000 Acoustical boardMaterialGalvanized steel sheet, aluminum sheet PC board, acrylic board Hole typeLouver hole, Microporous Size(mm)500 x 2000 x 80, 500 x 2000 x 100, 500 x 1200 x 120 Surface treatmentElectrostatic spraying ColorGreen, blue, white, gray Sound absorbing materialGlass wool24kg/m3, 30kg/m3, 48kg/m3 Package of glass woolGlass fibre cloth, PET waterproof and high temperature resistant film H postSize(mm)100 x 100 x 6 x 8, 125 x 125 x 6.5 x 9, 150 x 150 x 7 x 10, 175 x 175 x 7.5 x 11 Height2-6 meters, the most height can be 12 meters Flange base(mm)250 x 250, 300 x 300, 350 x 350, 400 x 400, 500 x 500 Thickness: 12, 14, 20 and so on MaterialQ235 Surface treatmentGalvanized,Electrostatic spraying ColorGreen, blue, white, gray Installation accessoriesGusset plate, post cap, V shape clamp spring, self-tapping screw

Application

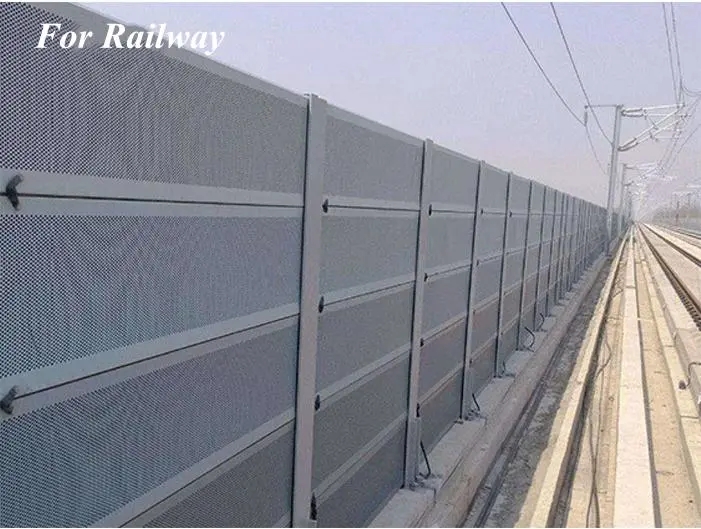

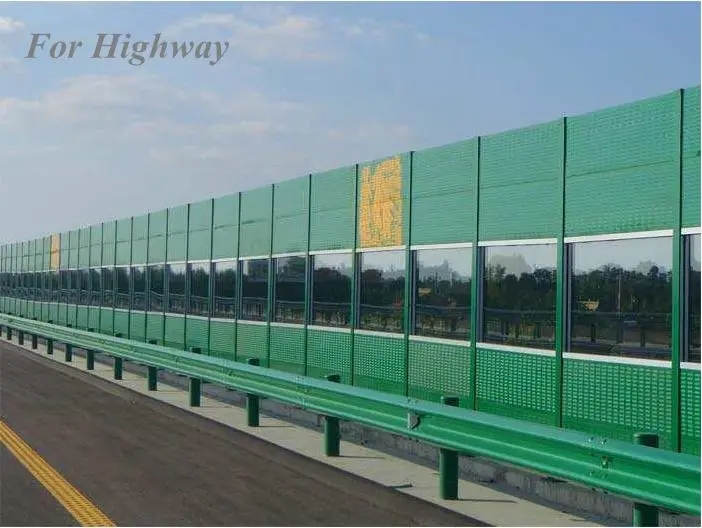

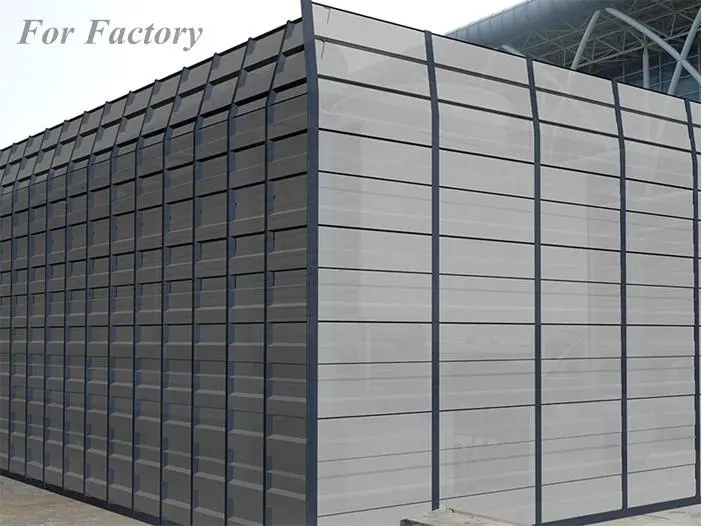

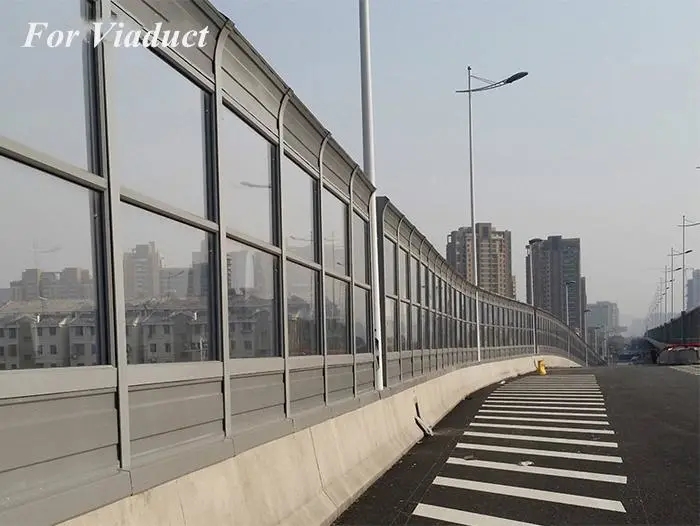

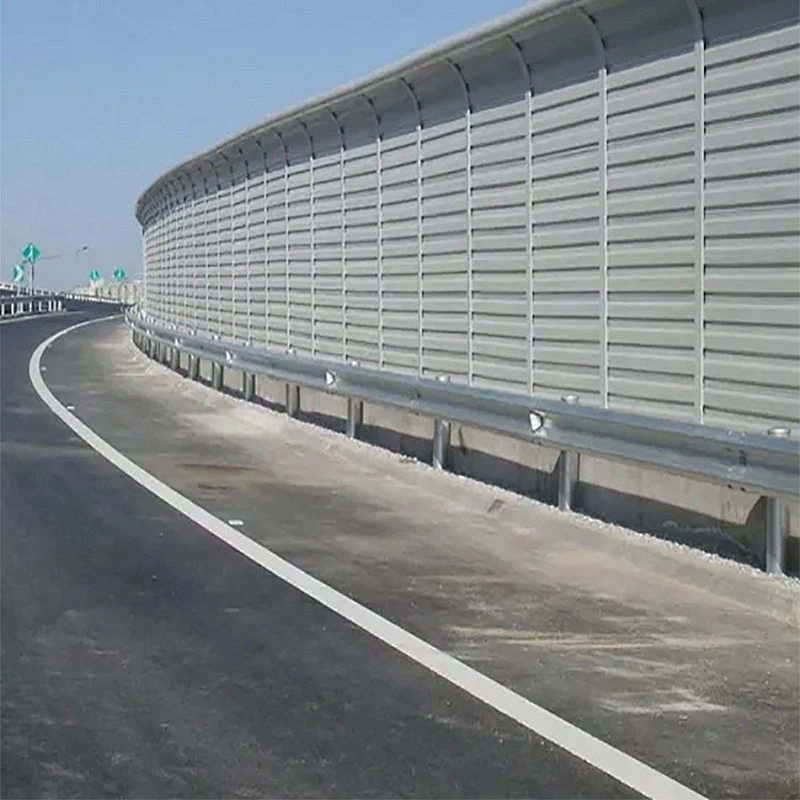

Noise barriers are mainly used for sound insulation and noise reduction in transportation and municipal facilities such as expressways,elevated composite roads, urban light rail subways, etc., to control the impact of traffic noise on nearby urban areas, and can also be used for sound insulation and noise reduction in factories and other noise sources.

Application Noise barriers are mainly used for sound insulation and noise reduction in transportation and municipal facilities such as expressways,elevated composite roads, urban light rail subways, etc., to control the impact of traffic noise on nearby urban areas, and can also be used for sound insulation and noise reduction in factories and other noise sources.
Application Noise barriers are mainly used for sound insulation and noise reduction in transportation and municipal facilities such as expressways,elevated composite roads, urban light rail subways, etc., to control the impact of traffic noise on nearby urban areas, and can also be used for sound insulation and noise reduction in factories and other noise sources.
Application Noise barriers are mainly used for sound insulation and noise reduction in transportation and municipal facilities such as expressways,elevated composite roads, urban light rail subways, etc., to control the impact of traffic noise on nearby urban areas, and can also be used for sound insulation and noise reduction in factories and other noise sources.
Application Noise barriers are mainly used for sound insulation and noise reduction in transportation and municipal facilities such as expressways,elevated composite roads, urban light rail subways, etc., to control the impact of traffic noise on nearby urban areas, and can also be used for sound insulation and noise reduction in factories and other noise sources.

FAQ
1. who are we?
We are based in Guangzhou, China, start from 2013,sell to Domestic Market(50.00%),North America(20.00%),Southern Europe(10.00%),Eastern Europe(10.00%),South America(10.00%).

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
steel grating,FRP grid,Guardrail,sound barrier,filter mesh.

4. why should you buy from us not from other suppliers?
The company insists on taking improving product quality as the goal, taking excellent after-sales service as the purpose, carrying out ISO 9001 standard to strengthen the internal management of the enterprise, and pursuing the product quality of excellence.

5. How to purchase our products?
Inquiry- Quotation - Price Confirm - PI -Confirm PI - Design Drawing - Arrange 30% Deposit - Produce - Arrange Balance - Shipping
  • Place of Origin:Guangzhou,China
  • Brand Name:GZxincheng
  • Model Number:XC-NBP003
  • Panel Material:Metal
  • Type:Other
