Model NO.
XC-ASP007
Price:
US $ 10.50-19.00 / square meters
Delivery:
EXW,CNF,CIF
Minimum order quantity:
300 square meters
Supply Ability:
5000 square meters / Day
Country of Origin:
Guangzhou,China
Stock Time:
10--15 Days

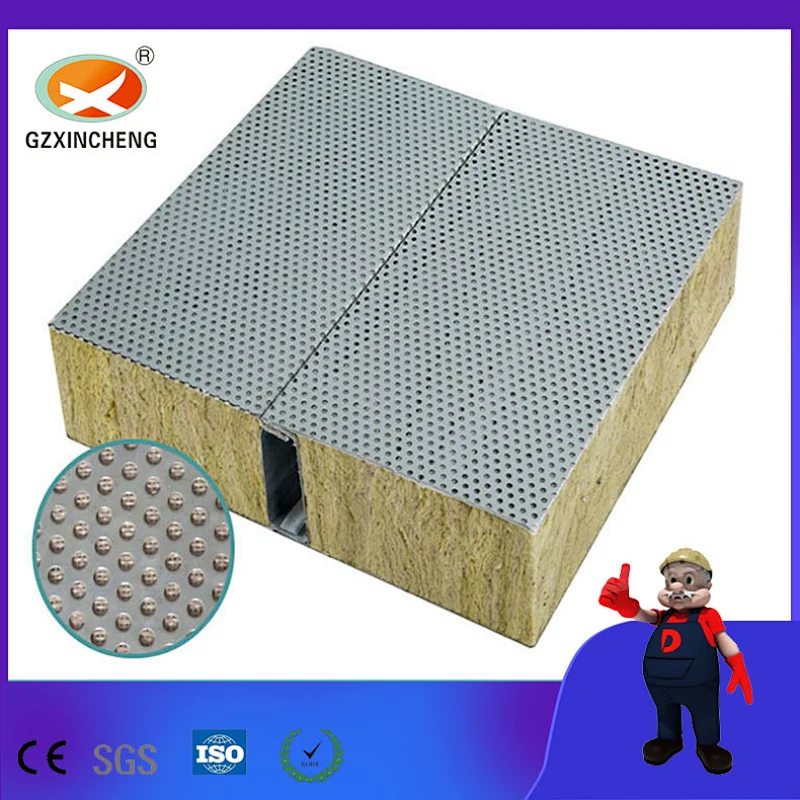

Rock Wool Perforated Acoustic Wall Panel is made of perforated steel sheet and rock wool board.
Quantity:

Product Introduction :

Rock wool Perforated acoustic wall panel is made of perforated steel sheet and rock wool board .Perforated steel sheet can be different type .Some can be all perforatd holes ,Some can be choose line perforated .This can be customized by your requirements.The core matrials rock wool can be choose from 60kg/cbm to 150 kg/cbm.The steel sheet can choose from 0.2-1.0 mm.The higher the density, the thicker the steel plate, and the better the quality.


Features:

Good noise absorption performance is an important factor for modern architcture ,it can reduce the noise of the inside and outside of the buildings through the punching process on the surface of steel plate or changing the insulating core materials .
Specification:

Upper Steel thickness 0.3 mm-0.7mm
Lower Steel Thickness
0.3 mm-0.7mm

Core Materials Thickness
50/75/100/125/150/200mm

Surface Materials
PPGI/PPGL/GI/AI sheet

Sutrcture
Upper and lower layer: Color steel sheet
Middle:rockwool board
Core Density 60-150kgs/M3

Effective Width
950mm/970mm
Recommend Coating PE/PVDF/SMP/HDP

Surface Finish
Flat

Fireproof Grade
A

Conventional Color
Ocean blue, offwhite (ral color)

Length
20'GP:no more than 5.9 meter/pcs
40'GP/40'HQ:no more than 11.9 meters/pcs

Lifetime
15~20 years

Features
Save more construction period , soundproof, energy-saving,environmental friendly

Useage
Large-size factory,workshop,gymnasium,villa etc.


Application :

Widely use in industrial sound-absorbing room with special requirements for noise reduction such as cement plants, steel plants, power stations,workshop ,warehouse and so on .

Shippment :


Generally shipping by sea and train .Few of goods and samples delivery by air.


                                              Warmly Welcome Your Inquiry !

  • Place of Origin:Guangzhou,China
  • Brand Name:GZXincheng
  • Model Number:XC-ASP007
  • Panel Material:Metal
  • Type:Rock Wool Sandwich Panels
