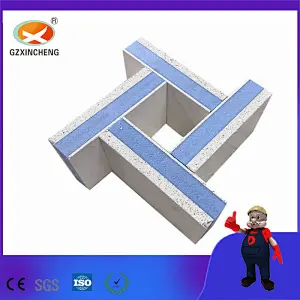

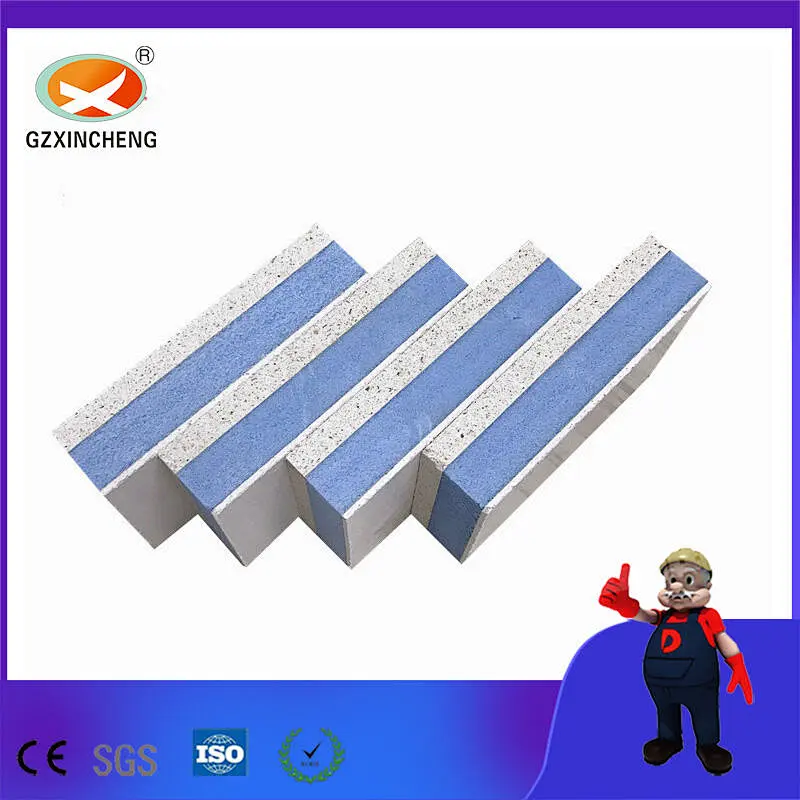

MgO Sandwich panel is a composite building material. They consist of a sandwich of two layers of structural board with an insulating foam in between. Panel skins are magnesium oxide boards. Insulation core can be Expanded Polystyrene(EPS), Extruded Polystyrene(XPS).
Compose : MgO (Magnesuim oxide ) Board +EPS/XPS+MgO (Magnesuim oxide ) Board
Common size: 900*2100, 600*2100
Largest width: 1200mm, adviced 900mm
Length: 2400mm, 2700mm, 3000mm, 3600mm, option is available
Mgo board thickness:3-20mm
EPS Density: 15-25KG/M3
Customized size can be accepted.
1. A finished product, can be used directly, no need to compound.
2. Lower the cost and time of construction.
3. Superior fireproof wallboard.
4. Good performance of sound insulation and keep warm.
5. Green and environment protection.
6. Easy to construct and combine discretionarily.
Comparsion of Core：
|Polyurethane||The main advantage of polyurethane (or the much harder to pronounce derivation, polyisicyanurate) is that it has the highest R-value of any SIP panel. After what's called thermal drift, it's about 6 to 6.8 of R-value per inch of panel.||The main detractor of urethane panels is the high cost. The other disadvantage in terms of construction is that polyurethane has a high melting point, hot wire burners (the primary method of modifying EPS and XPS panels on site) can't be used.|
|EPS||Over 80% of the SIP panels installed are EPS. EPS core material is widely available. It is easy to modify on sight and most sip installers have experience dealing with EPS. It's also the least expensive option in terms of material cost.|
|XPS||XPS has many of the best characteristics of both polyurethane and EPS. It has a high R-value (5 R-value per inch of panel). It is dense and stable yet has a relatively low melting point so on-site modifications are as easy as EPS. Also, like EPS, it bonds easily to OSB and gypsum board.|
Unfortunately XPS is expensive and manufactured panels are not widely available
Widely used in Simple mobile house, cold storage, warm-keeping houses, villa, prefabricated house and thermal insulation wallboard. It can also be used in flue pipe making.
1. Customized design is available OEM ODM are welcome.
2.Special discount can be offered with large quantity.
3.Reply your enquiry in 24 working hours.
4.Expericenced staffs will answer all your questions in professional and fluent English.
5.Exclusive unique solution can be proof provided by our well- trand and professional engineers.
We use excellent packing to protect goods safety to arrive to your hands, usually include Pearl
cotton, Carton/Wooden Box.
1.We advise you use International express like DHL /TNT /FedEx /UPS /EMS to carry sample order,
and bulk order use AIR transport or by sea.
2.We have professional freight forwarder in International express, AIR transport and sea transport
ation, will help customer efficiently save shipping cost/shipping time/safety shipping, then send
goods to you.
3.Shipping ways always according to your needs, we will have detailed communicate with custm-
er before delivery, we will send you tracking information and pay attention to the transportion
from goods leave factory until arrive to your appoint address.
1.Many payment method for choice: Bank transfer, L/C, Paypal, Western union etc.
2.Sample order: 100% payment before goods production.
3.Bulk order: 30% Deposit In advance, 70% balance Before Delivery.
