China Aluminum GMP Standard Modular Clean Room Door

China Aluminum GMP Standard Modular Clean Room Door

Model NO.: XC-PDW003
Price:: US $ 70.00-400.00 / pieces
Delivery:: EXW,C&F,CIF,FOB
Minimum order quantity:: 5 pieces
Supply Ability:: 300 pieces / Day
Country of Origin:: Guangzhou,China
Stock Time:: 15 Days

Quantity:

Product Description

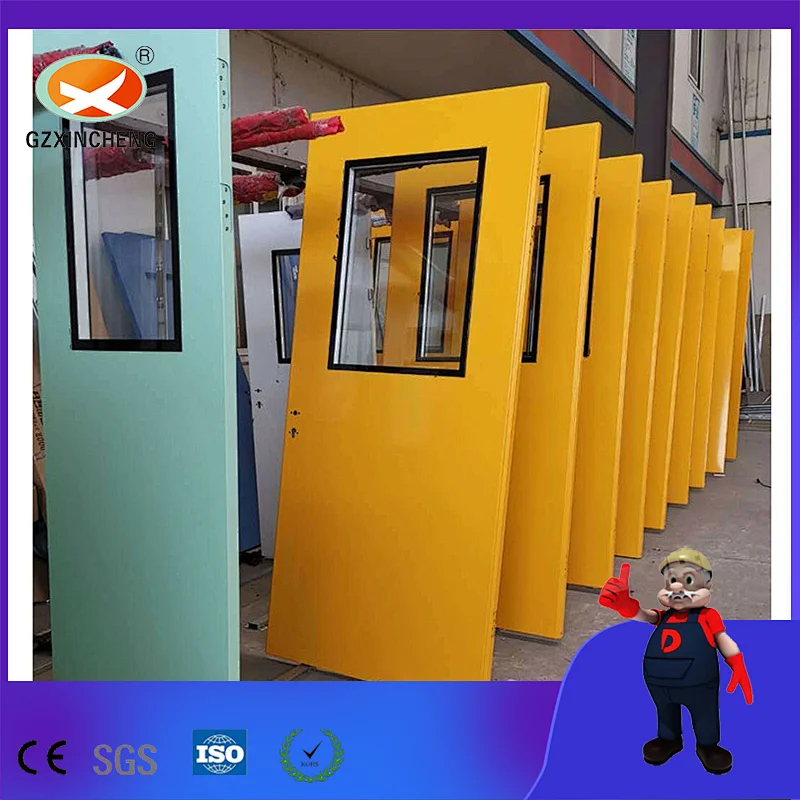

This Door system is widely applied to hospitals, medical centers, clean rooms and electronic factories. We use 304 stainless steel panel with honey comb insert to make clean room door. There are two interts which are paper honeycomb and aluminium honeycomb. In order to prevent dusts, we have added a brush seal on the bottom. The door could be operated with interlock system which is much safer than ordinary types.

Specifications:

Clean room door	Single leaf	Double leaf	Unequal doubel leaf
Width of door/mm	800/900/1000	1200/1500/1800	1200
Height of door/mm	Standard 2100 customized acceptable
Thickness of door leaf/mm	Standard 40/50
Material of door leaf	Spray plate/HPL/Stainless steel
Door frame	Aluminum alloy/colored steel
Door panel filler	Aluminum honeycomb panel/paper honeycomb panel/rockwool
Opening manual	Automatic/sliding/swing
Opening speed	Depends
Wall option	Sandwich panel	Handicraft panel	wall door
Thickness of wall(mm)	50/75/100	50/75/100	customized
Observation window	5mm double layer tempered glass
Size of window	386/586 circular shape or 400*600 rectangular
Types of locking stystem	Leverset lock/Split seriers and more for options
Types of opening control	Clear close system/Hidden close system/Interlocking system/Automatic sliding system
Applications	Operating Theatres/X-Ray theatres/Recovery rooms/High dependency/Pharmacies/Cosmetics/electronics
Note: 1. The dimension,door leaves,color and panel can be customized
2. Gennerally the material of the door plate is galvanized steel with power coating surface treatment or 304 stainless steel.
