Model NO.
XC-PDW005
Price:
US $ 70.00-400.00 / pieces
Delivery:
EXW,C&F,CIF,FOB
Minimum order quantity:
5 pieces
Supply Ability:
300 pieces / Day
Country of Origin:
Guangzhou,China
Stock Time:
15 Days
Quantity:

This Door system is widely applied to hospitals, medical centers, clean rooms and electronic factories. We use 304 stainless steel panel with honey comb insert to make clean room door. There are two interts which are paper honeycomb and aluminium honeycomb. In order to prevent dusts, we have added a brush seal on the bottom. The door could be operated with interlock system which is much safer than ordinary types.


Specifications:

Clean room door
Single leaf
Double leaf
Unequal doubel leaf
Width of door/mm
800/900/1000
1200/1500/1800
1200
Height of door/mm
Standard 2100 customized acceptable
Thickness of door leaf/mm
Standard 40/50
Material of door leaf
Spray plate/HPL/Stainless steel
Door frame
Aluminum alloy/colored steel
Door panel filler
Aluminum honeycomb panel/paper honeycomb panel/rockwool
Opening manual
Automatic/sliding/swing
Opening speed
Depends
Wall option
Sandwich panel
Handicraft panel
wall door
Thickness of wall(mm)
50/75/100
50/75/100
customized
Observation window
5mm double layer tempered glass
Size of window
386/586 circular shape or 400*600 rectangular
Types of locking stystem
Leverset lock/Split seriers and more for options
Types of opening control
Clear close system/Hidden close system/Interlocking system/Automatic sliding system
Applications
Operating Theatres/X-Ray theatres/Recovery rooms/High dependency/Pharmacies/Cosmetics/electronics
Note: 1. The dimension,door leaves,color and panel can be customized
2. Gennerally the material of the door plate is galvanized steel with power coating surface treatment or 304 stainless steel.

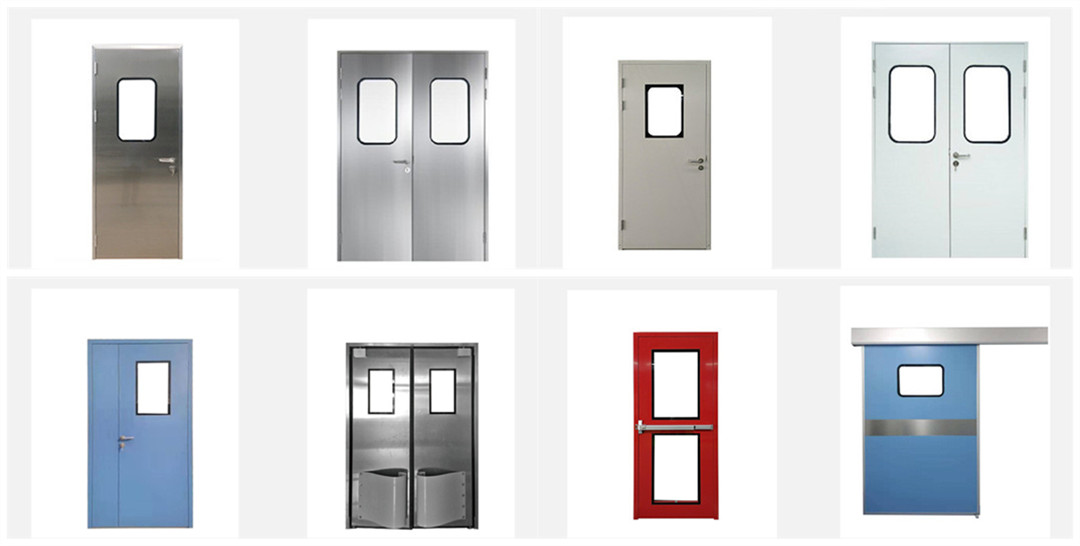

Detailed Pictures:

Features :

(1) Fire resistant/ Bacteria resistant / Water resistant / Radiation resistant

(2) Airtight, durable, easy to clean, low noise,beautiful appearance

(3) Advanced technology, long service life and stable performance

(4) Patent structure, solid and crashworthy

(5) Intelligent design, easy to install and adjust

(6) Rust-proof and anti-corrosion/Dust-proof and Air tight

(7) Good seal performance /Durable and easy for cleaning

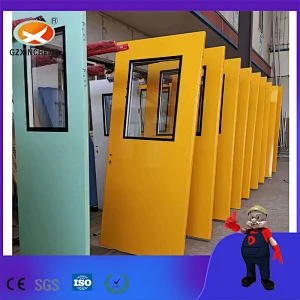

Production Equipment:
