High Density Polyurethane PIR/PU/PUR Insulated Laminated Sandwich Panels for Roof/Wall

High Density Polyurethane PIR/PU/PUR Insulated Laminated Sandwich Panels for Roof/Wall

Model NO.: XC-PIRP004
Price:: US $ 11.00-14.00 / square meters
Delivery:: EXW,FOB,C&F,CIF
Minimum order quantity:: 300 square meters
Supply Ability:: 2000 square meters / Day
Country of Origin:: Guangzhou, China
Stock Time:: 15 Days

Quantity:

Product Description
Basic Information

PIR sandwich panels are light and durable wall and roofing panels with fireproof polyisocyanurate PIR filler.
The biggest advantage of PIR sandwich panels is their low thermal conductivity. At only 0.022 W/(m*k), PIR Premier's thermal
conductivity is lower than any other building material.
Compared to PUR systems, PIR foam has reduced flammability. Under the influence of flame, the outer layer of PIR is charred
to form a porous carbon matrix that protects the inner layers and prevents them from burning.

Specification

Product Name	Sandwich Panel
Core Material	Flame retardant polystyrene foam
Width	950mm/1200mm
Thickness	50/75 /100/150/200mm
Surface	PPGI,GI,Stainless Steel,Embossed Aluminium
PPGI thickness	0.376mm/0.426mm/0.476mm/0.5mm(Pre-Painted Galvanized Steel)
Length	Customized length,within 11m
Effective Width	1150mm
Density	60/80kg/m³
Color	Common White ,other RAL color is avaiable

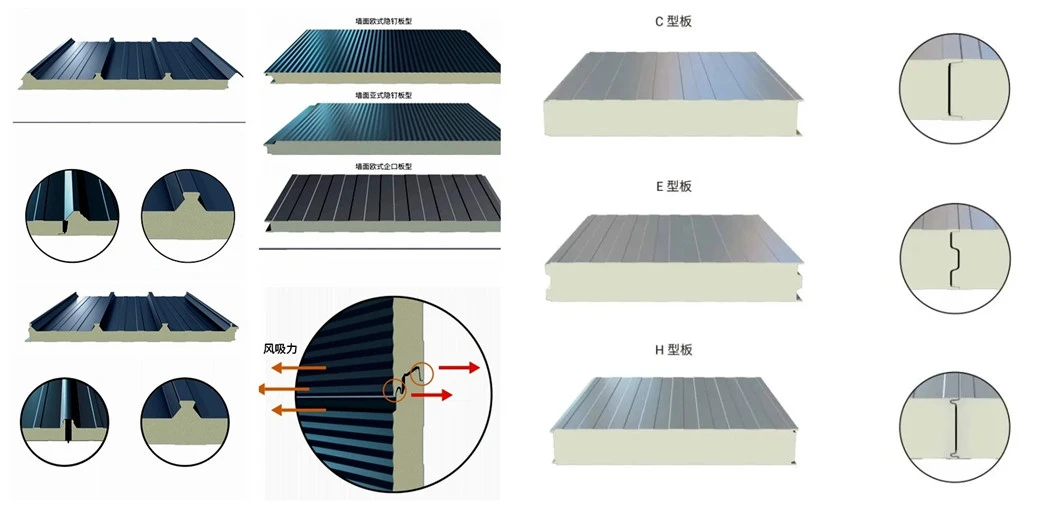

Installation	Tongue and groove

Panel Paramenters

Filler type	PIR
Density	(41 ± 2) kg/m3
Panel thickness, mm	40	60	80	100	120	150
Weight, kg / m2	9,8	10,7	11,5	12,3	13,1	14,4
Maximum length	16 000 mm
Width	1 085 mm
Working width	1 000 mm
Metal thickness	≥ 0,45 mm
Metal surface	profiled / smooth
Standard execution	RAL 9003 / Zn (unpainted galvanized sheet)
Coefficient thermal conductivity	0.022 W / mK
The coefficient of thermal resistance	2	2,95	3,9	4,86	5,81	7,24
Moisture absorption in 24 hours at relative humidity 96%	1-2,5%
Water absorption in 24 hours with full immersion,% of the volume	2,50%
Soundproofing	35 dBA

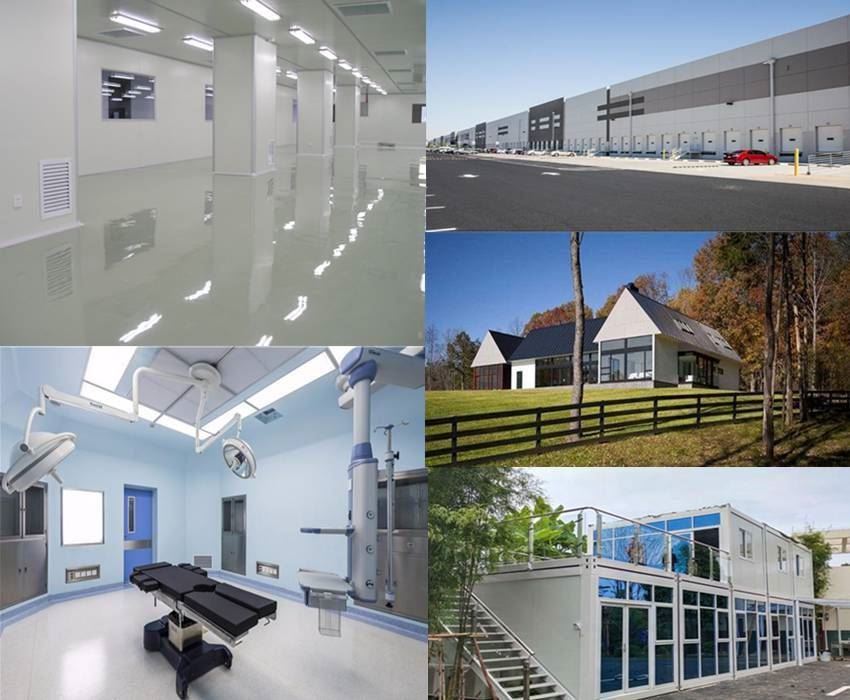

Application

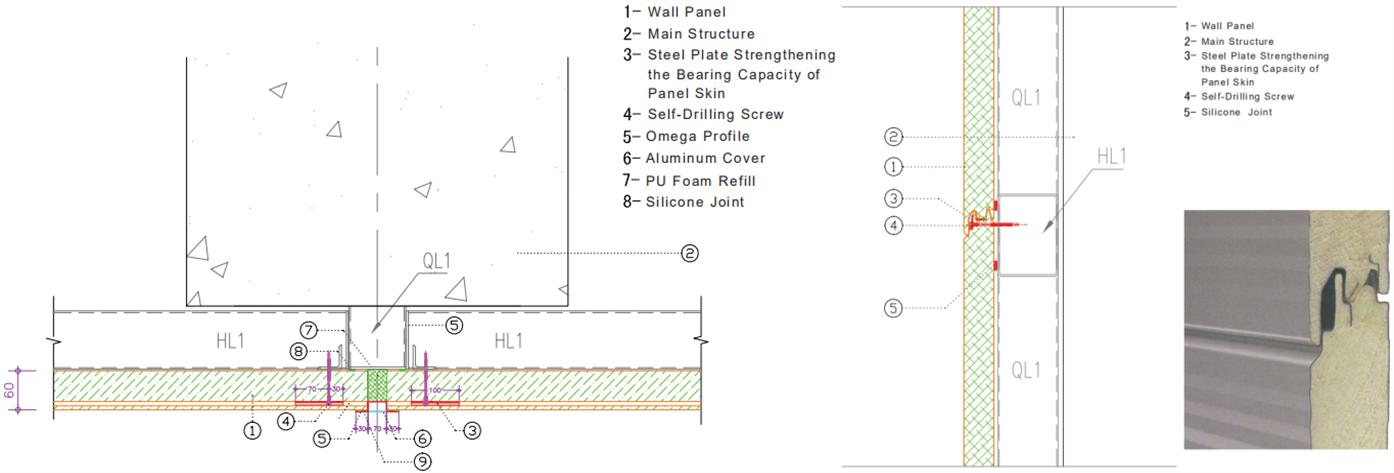

Wall Panel Connection Details

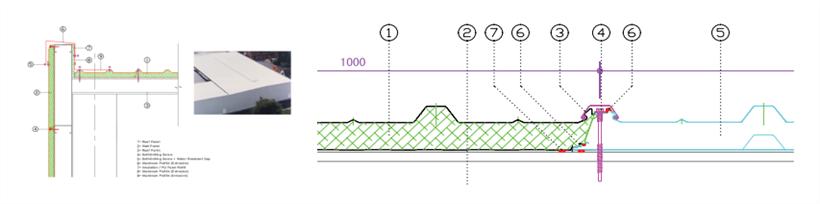

Roof Panel Connection

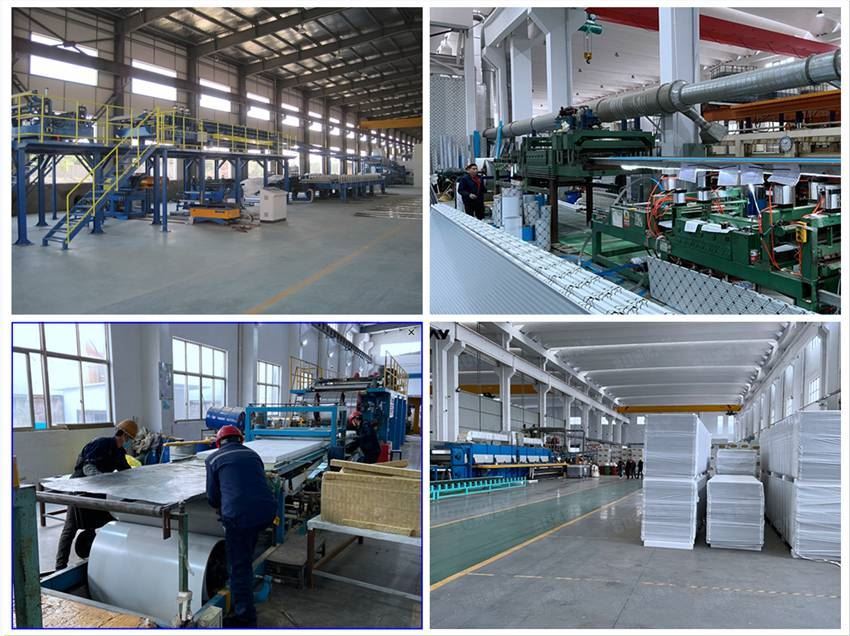

Our Factory:

PIR Premier sandwich panels are used to build:
• Refrigerators, cold and freezing rooms
• Vegetable and fruit storage
• Agricultural facilities: cowsheds, pig farms, poultry houses, etc.
• Logistic facilities, refrigerated warehouses
• Production and office buildings, workshops
• Service stations, hangars

Certifications:

Company Information:

Service:
1. Customized design is available OEM ODM are welcome.
2.Special discount can be offered with large quantity.
3.Reply your enquiry in 24 working hours.
4.Expericenced staffs will answer all your questions in professional and fluent English.
5.Exclusive unique solution can be proof provided by our well- trand and professional engineers.

Packing:
We use excellent packing to protect goods safety to arrive to your hands, usually include Pearl cotton, Carton/Wooden Box.

Delivery:
1.We advise you use International express like DHL /TNT /FedEx /UPS /EMS to carry sample order,
and bulk order use AIR transport or by sea.
2.We have professional freight forwarder in International express, AIR transport and sea transport
ation, will help customer efficiently save shipping cost/shipping time/safety shipping, then sendgoods to you.
3.Shipping ways always according to your needs, we will have detailed communicate with customer before delivery, we will send you tracking information and pay attention to the transportion
from goods leave factory until arrive to your appoint address.

Payment Terms:
1.Many payment method for choice: Bank transfer, L/C, Paypal, Western union etc.
2.Sample order: 100% payment before goods production.
3.Bulk order: 30% Deposit In advance, 70% balance Before Delivery.
