Pharmaceutical Clean Room Partition Cleanroom Sandwich Panel

Pharmaceutical Clean Room Partition Cleanroom Sandwich Panel

Model NO.: XC-GMSP011
Price:: US $ 11.50-16.50 / square meters
Delivery:: EXW,FOB,CIF,C&F
Minimum order quantity:: 300 square meters
Supply Ability:: 5500 square meters / Day
Country of Origin:: Guangzhou,China
Stock Time:: 20 Days

Waterproof glass magnesium sandwich panel is made of MGO board and steel sheet .Widely used as internal and external wall boards at purification workshops and space with high requirements on fire prevention and temperature preservation,such as hospital ,electronics ,food,cosmetics,beverage and laboratory.

Quantity:

Product Introduction:

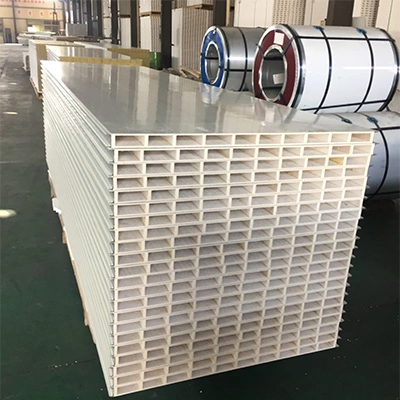

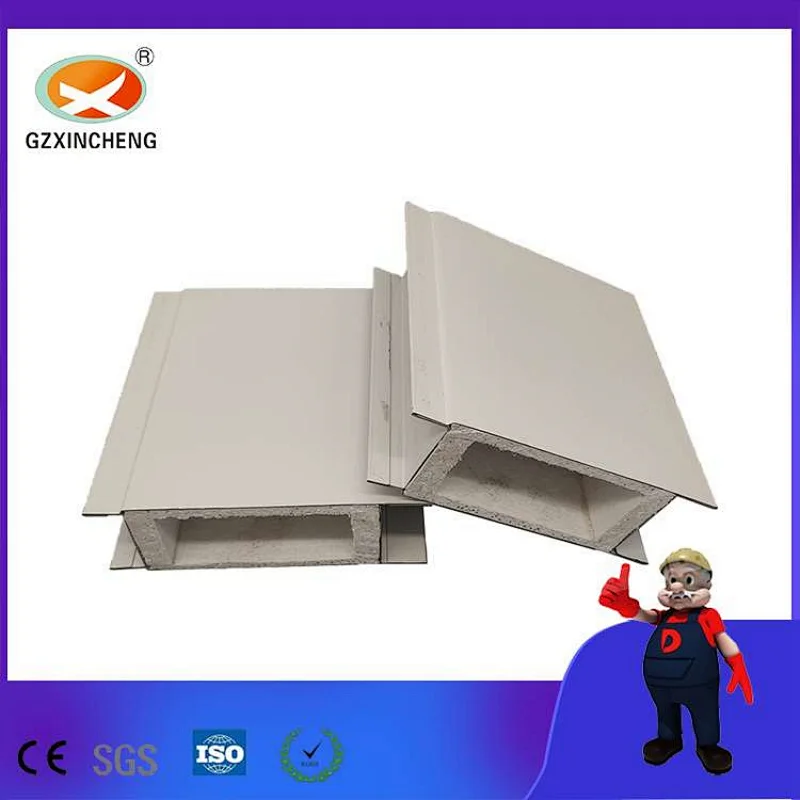

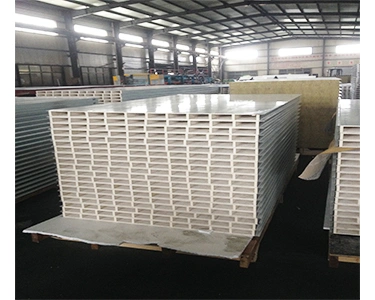

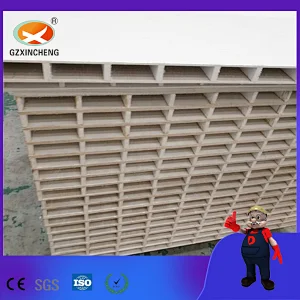

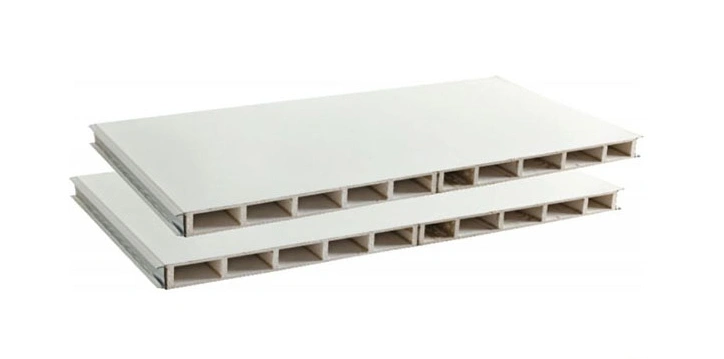

Waterproof glass magnesium sandwich panel is made of color steel sheet and mgo board.MGO board is magnesium blinding material with stable perfomance ,made from magnesium oxid ,magnesium chloride and glass fiber through configuration and addition of modifyingagent.

The color steel sheet can be shosen from 0.3mm--1.2mm .Many colors can be chosen ,we normally choose blue ,officewhite,orange and green.

Application:
Worshop, temporary office/buiding, gymansia, villa, mobile building, guard booth, wall & roof materials for steel building or structure.

Features:
1. Fire proof: 67minutes
2. Weather proof
3. High density
4. High temperature withstanding capacity more than 1000℃

Parameters:

Product name	Hollow Magnesium Oxide sandwich board
Thickness	upper layer	0.3mm-1.2mm
	core material	50mm-150mm
	bottom layer	0.3mm-1.2mm
Effective Width	standard	950mm, 1150mm
	other	can be customized
Length	can be customized,less than 12m
Density	24kg/m3
Weight	up to model
Color	Ral Standard,blue,offwhite,orange
Temp tolerance	1500℃
Hydrophobic rate	≥97.5%
Fire resistance level	A (>70 minutes)
Surface profile	flat,corrugated,big rib, small wave
Compression bearing	22Mpa(GB/T7019-1997)
The shrinking rate when heated	1.0%(GA160-1997)
The rate of deformation when pick up the moisture	0.26%(GA160-1997)
Material	upper layer	color steel plate or stainless steel sheet (also can be PPGI, galvanized sheet, condominium zinc plate, printing steel plate, alumina foil paper, PVC and Plywood)
	inner layer	Magnesium oxide,magnesium chlo-ride,saw dust,perlite
	bottom layer	color steel plate or stainless steel sheet (also can be PPGI, galvanized sheet, aluminum zinc plate, printing steel plate, aluminum foil paper, PVC and Plywood)
Parts	Eccentric hook used for connection of panel
	Film covering for protecting the surface layer
Connection method	Capped for roof panel,Tongue and groove for wall panel
Heat transfer coefficient	≤0.041 W/M*K
Characteristics	Sound insulation≥44db(GBJ121-88)
	Superior heat insulation, waterproof and damp resistant
	Attractive appearance.
	High density, bending resistance, can be sawing,nailing and sticking.
	Eco-friendly
	Freezing and cracking proof.
	Weather proof
	light weight,very easy to insulation and dismantling
	safe,100% does not include the asbestos,formaldehyde,and benzene
	Lifespan	>20 years

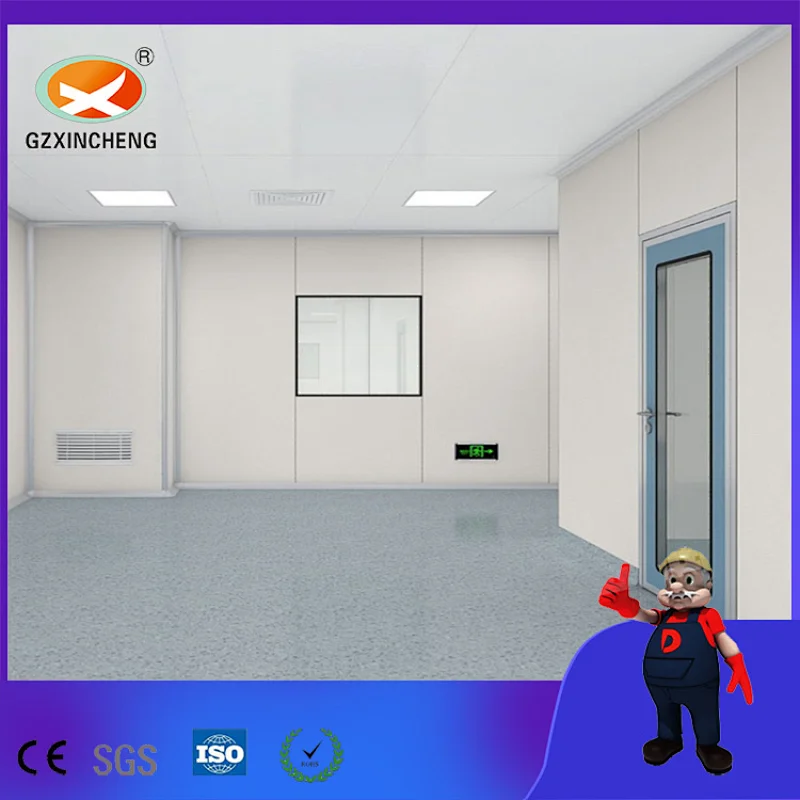

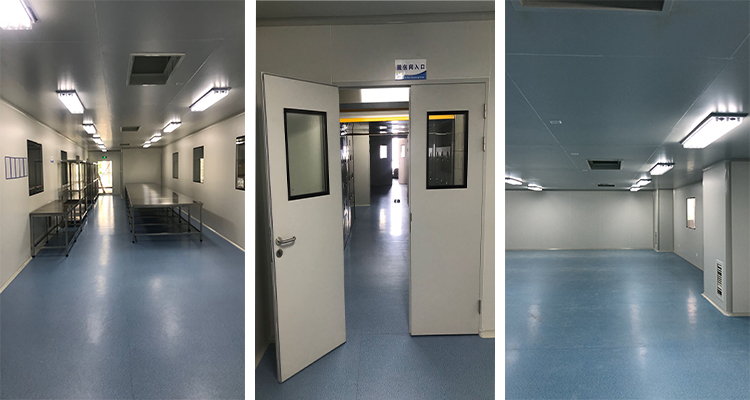

Usage	Widely used in: Indoor and outdoor boards for purifying factory building, combined house and indoor partition with high level requirement in fire proofing and thermal insulation. E.g.Interior decoration of civil buildings for medicine, electronics, biology research, foodstuff, beverage etc.

Related Product:

Certificate :

CE,SGS,RoHs,ISO9001
