Phenolic Sandwich Panel for Hospital Purification

Model NO.
US $ 10.00-16.00 / square meters
Minimum order quantity:
300 square meters
Supply Ability:
4000 square meters / Day
Country of Origin:
Guangzhou ,China
Stock Time:
15 Days
Glass Magnesium Rock Wool Sandwich Panel is the best sandwich board for hospital room.

Phenolic sandwich panel is an excellent alternative to traditional galvanized Iron (sheet metal) duct workand it is ideal for specifications where space or weight is restricted.

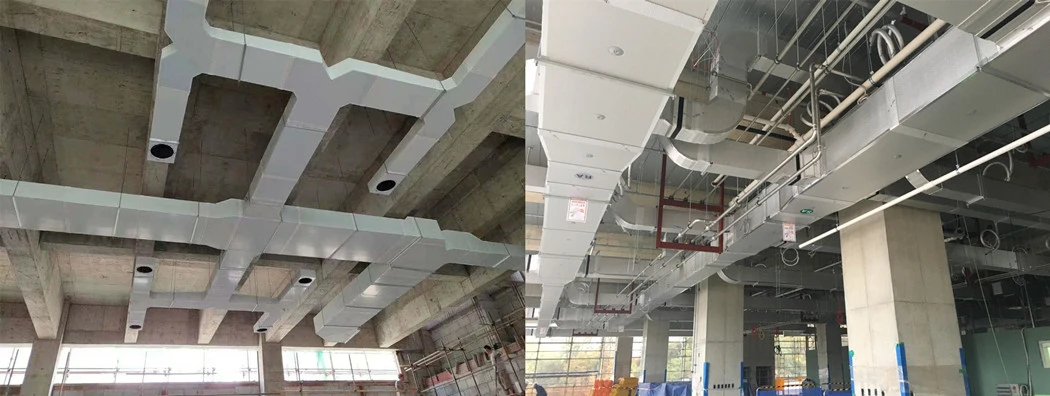

Be used to make the air conditioning heat preservation ventilating duct's material,it widely uses in market,hospital,supermarket, stadium, hotel, workshop, guesthouse, airport, pure project food store, and so on.

Phenolic sandwich panel
Core materialPhenolic
Core density60-120kg/m3
Panel type980/1180 Mid-mounted box board
950/1150 Tongue-and-groove
Color steel plate thickness0.3-1.5mm
Sandwich panel thickness50mm/75mm/100mm/150mm/200mm/250mm
LengthCustomized according to customer requirements
Fire-proof levelB1
Thermal Conductivity≤0.040w/m*k
dimensional stability≤ 2%
Water absorption rate≤7.5%
Pressure strength≥100kpa
Operating temperature140℃~160℃

Technical Parameter

Conventional thickness
20mm, 25mm, 30mm
Bending strength
≥1.1 MPa
Length/Width (mm)
2000x1200, 3000x1200, 4000x1200
Leakage air volume
≤ 1.2%
Fireproof rating
UL181/ASTM/BS476 PART6&7/A2
Thermal resistance
0.86 m2K/W
Density of core material
Smoke density
≤9, no toxic gas release
Water absorption
Dimension stability
≤2% (70±2ºC, 48h)
Thermal conductivity
0.019-0.02 W(mK)
Oxygen index
Heat resistance
-150 ~ +150ºC
Duration of fire resistance
Wind resistance strength
≤1500 Pa
Formaldehyde Emission
Compression strength
≥0.18 MPa
Air flow max

Product characteristics

• Easy to install, shorten the construction period.

• Protect environment, sandwich structure with antioxidant surfaces.

• Fireproof, meet the National standard, makes building safe.

• Nice appearance.

• Improve air quality

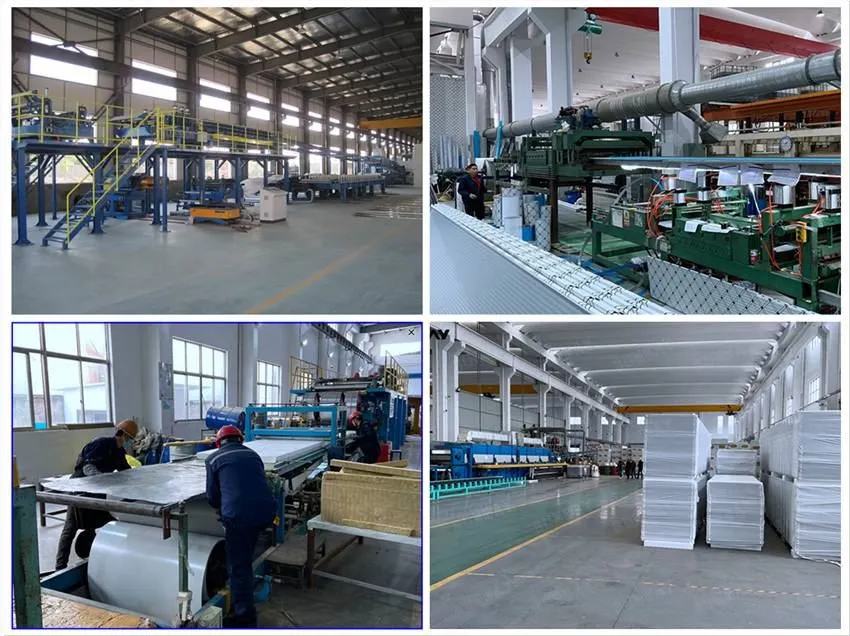

Our Factory:


About Us:

1. Customized design is available OEM ODM are welcome.
2.Special discount can be offered with large quantity.
3.Reply your enquiry in 24 working hours.
4.Expericenced staffs will answer all your questions in professional and fluent English.
5.Exclusive unique solution can be proof provided by our well- trand and professional engineers.

We use excellent packing to protect goods safety to arrive to your hands, usually include Pearl
cotton, Carton/Wooden Box.

1.We advise you use International express like DHL /TNT /FedEx /UPS /EMS to carry sample order,
and bulk order use AIR transport or by sea.
2.We have professional freight forwarder in International express, AIR transport and sea transport
ation, will help customer efficiently save shipping cost/shipping time/safety shipping, then send
goods to you.
3.Shipping ways always according to your needs, we will have detailed communicate with custm-
er before delivery, we will send you tracking information and pay attention to the transportion
from goods leave factory until arrive to your appoint address.

Payment Terms:
1.Many payment method for choice: Bank transfer, L/C, Paypal, Western union etc.
2.Sample order: 100% payment before goods production.
3.Bulk order: 30% Deposit In advance, 70% balance Before Delivery.

  • Place of Origin:Guangzhou ,China
  • Brand Name:GZXincheng
  • Model Number:XC-PFP002
  • Panel Material:Metal
  • Type:Rock Wool Sandwich Panels; Other
