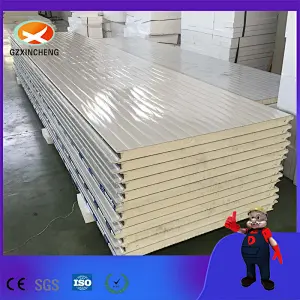

PIR sandwich panels are light and durable wall and roofing panels with fireproof polyisocyanurate PIR filler.
The biggest advantage of PIR sandwich panels is their low thermal conductivity. At only 0.022 W/(m*k), PIR Premier's thermal
conductivity is lower than any other building material.
Compared to PUR systems, PIR foam has reduced flammability. Under the influence of flame, the outer layer of PIR is charred
to form a porous carbon matrix that protects the inner layers and prevents them from burning.
Flame retardant polystyrene foam
PPGI,GI,Stainless Steel,Embossed Aluminium
0.376mm/0.426mm/0.476mm/0.5mm(Pre-Painted Galvanized Steel)
Customized length,within 11m
Common White ,other RAL color is avaiable
Tongue and groove
(41 ± 2) kg/m3
Panel thickness, mm
Weight, kg / m2
16 000 mm
1 085 mm
1 000 mm
≥ 0,45 mm
profiled / smooth
RAL 9003 / Zn (unpainted galvanized sheet)
0.022 W / mK
The coefficient of thermal resistance
Moisture absorption in 24 hours at relative humidity 96%
Water absorption in 24 hours with full
immersion,% of the volume
Wall Panel Connection Details
Roof Panel Connection
PIR Premier sandwich panels are used to build:
• Refrigerators, cold and freezing rooms
• Vegetable and fruit storage
• Agricultural facilities: cowsheds, pig farms, poultry houses, etc.
• Logistic facilities, refrigerated warehouses
• Production and office buildings, workshops
• Service stations, hangars
1. Customized design is available OEM ODM are welcome.
2.Special discount can be offered with large quantity.
3.Reply your enquiry in 24 working hours.
4.Expericenced staffs will answer all your questions in professional and fluent English.
5.Exclusive unique solution can be proof provided by our well- trand and professional engineers.
We use excellent packing to protect goods safety to arrive to your hands, usually include Pearl cotton, Carton/Wooden Box.
1.We advise you use International express like DHL /TNT /FedEx /UPS /EMS to carry sample order,
and bulk order use AIR transport or by sea.
2.We have professional freight forwarder in International express, AIR transport and sea transport
ation, will help customer efficiently save shipping cost/shipping time/safety shipping, then sendgoods to you.
3.Shipping ways always according to your needs, we will have detailed communicate with customer before delivery, we will send you tracking information and pay attention to the transportion
from goods leave factory until arrive to your appoint address.
1.Many payment method for choice: Bank transfer, L/C, Paypal, Western union etc.
2.Sample order: 100% payment before goods production.
3.Bulk order: 30% Deposit In advance, 70% balance Before Delivery.
