Prefab House Insulated Water Resistant EPS Sandwich Panel

Prefab House Insulated Water Resistant EPS Sandwich Panel

Model NO.: XC-EPSP037
Price:: US $ 7.99-12.59 / square meters
Delivery:: EXW,FOB,C&F,CIF
Minimum order quantity:: 300 square meters
Supply Ability:: 2000 square meters / Day
Country of Origin:: Guanmgzhou,China
Stock Time:: 15 Days

EPS sandwich panel is a proven construction material well-suited to the extremes. It is a cost-effective, lightweight construction material with excellent insulation properties.

Quantity:

Product Description
Basic Information

EPS sandwich panel has excellent sound insulation and heat insulation,the inner and outer sides of steel plate.The surface of the sandwich panel is bright and clean, the dirt can be easily removed, and the whole panel is bright in color, and has good Thermal Insulation.Can be customized according to customer.

Specification:

Product Name	EPS Sandwich Panel
Density of eps	8-20kg/m3
Effective width	950mm/1150mm
EPS core thickness	50mm,75mm,100mm,150mm,200mm
Steel thickness	Normal:0.3-0.6mm
Length	According to customer's request, but if container transportation,normal less 11.8m
Color	China red,seablue,whitegrey,as customized
The thermal conductivity	0.038W/M.K
Water absorption	≤6%
The compression strength	≥69KPa
Dimensional stability(70ºC,48h)	≤5%
Application temperature	-20ºC-75ºC
Package	Standard seaworthy exporting package,plastic thin film package and Wooden pallets
Transport	By sea

Features:
1.Water Prevention:

high-quality water-proof EPS.
2.Thermal Insulation:

the low coefficient of heat conductivity and the excellent node design guarantee the sealing performance and the thermal insulation effect.
3.Sound Insulation:

the sound absorption effect is good. The sound reduction factor is no less than 30dB. It can effectively reduce the interference of outside noise.
4.Solid:

the panel has high strength, unique double-support plug interface design and strong capacity in wind pressure resistance. It has strong strength to resist pressure and bearing, which can used as exterior protected construction and load-carrying construction.
5.Beautiful Design:

bright in color and attractive in appearance, there is no need to make the outer ornament. The panel adopts hidden-screw node design and has diversified panel effects.
6.Convenient Installation:

Easy, flexible and fast. Compared with civil construction, it can cut down over 40% construction

period.

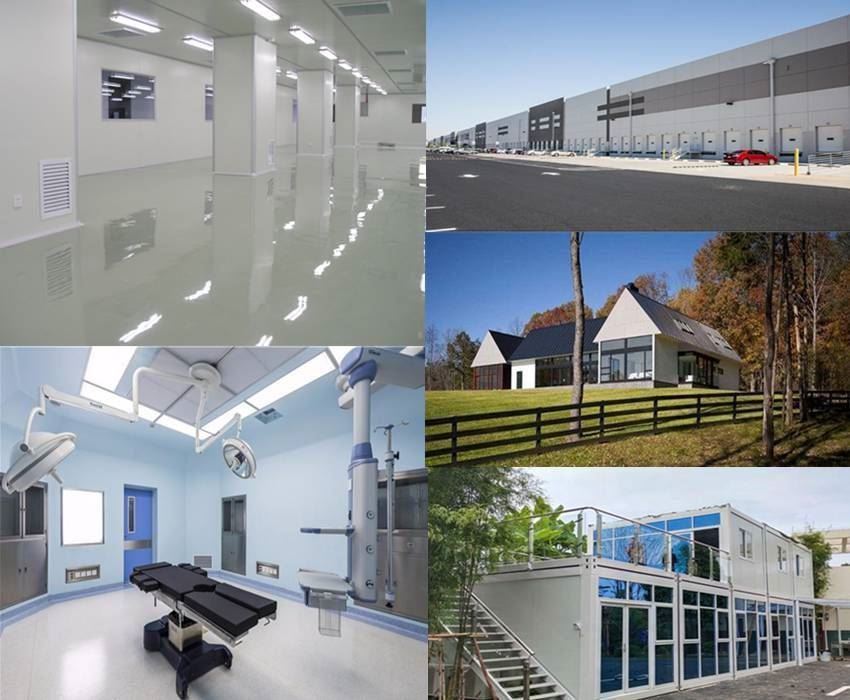

Application:

Widely used in prefabricated building ,steel tructure house ,warehouse,workshop ,commercial building,indoor partitions.

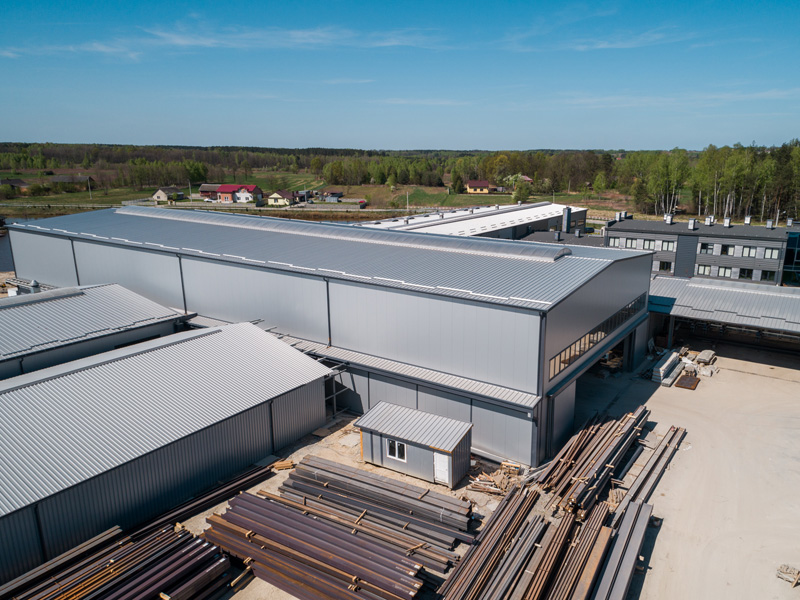

Our Factory:

Certifications:

Company Information:

Service:
1. Customized design is available OEM ODM are welcome.
2.Special discount can be offered with large quantity.
3.Reply your enquiry in 24 working hours.
4.Expericenced staffs will answer all your questions in professional and fluent English.
5.Exclusive unique solution can be proof provided by our well- trand and professional engineers.

Packing:
We use excellent packing to protect goods safety to arrive to your hands, usually include Pearl
cotton, Carton/Wooden Box.

Delivery:
1.We advise you use International express like DHL /TNT /FedEx /UPS /EMS to carry sample order,
and bulk order use AIR transport or by sea.
2.We have professional freight forwarder in International express, AIR transport and sea transport
ation, will help customer efficiently save shipping cost/shipping time/safety shipping, then send
goods to you.
3.Shipping ways always according to your needs, we will have detailed communicate with custm-
er before delivery, we will send you tracking information and pay attention to the transportion
from goods leave factory until arrive to your appoint address.

Payment Terms:
1.Many payment method for choice: Bank transfer, L/C, Paypal, Western union etc.
2.Sample order: 100% payment before goods production.
3.Bulk order: 30% Deposit In advance, 70% balance Before Delivery.
