Prefabricated House EPS Concrete Cement Sandwich Wall Panel
Prefabricated House EPS Concrete Cement Sandwich Wall Panel
Prefabricated House EPS Concrete Cement Sandwich Wall Panel
Prefabricated House EPS Concrete Cement Sandwich Wall Panel
Prefabricated House EPS Concrete Cement Sandwich Wall Panel
Prefabricated House EPS Concrete Cement Sandwich Wall Panel
Prefabricated House EPS Concrete Cement Sandwich Wall Panel
Prefabricated House EPS Concrete Cement Sandwich Wall Panel
Prefabricated House EPS Concrete Cement Sandwich Wall Panel
Prefabricated House EPS Concrete Cement Sandwich Wall Panel
Prefabricated House EPS Concrete Cement Sandwich Wall Panel
Prefabricated House EPS Concrete Cement Sandwich Wall Panel
Prefabricated House EPS Concrete Cement Sandwich Wall Panel

Prefabricated House EPS Concrete Cement Sandwich Wall Panel

Model NO.
XC-ECP002
Price:
US $ 7.99-12.59 / square meters
Delivery:
EXW,FOB,C&F,CIF
Minimum order quantity:
300 square meters
Supply Ability:
2000 square meters / Day
Country of Origin:
Guanmgzhou,China
Stock Time:
15 Days
Quantity:

Specification:

Thickness(mm)
60
75
90
100
120
125
150
Length(mm)
2440
Width(mm)
610
Density(kg/m2)
48±5
55±5
60±5
65±5
72±5
75±5
88±5
Fire endurance (h)
1
2
3
3
4
4
4
Can be customized according to the needs of users processing.

Technical Data:

Item
60mm
70mm
90mm
100mm
120mm
125mm
150mm
Anti-impact Capacity/times
≥5
≥5
≥5
≥5
≥5
≥5
≥5
Anti-Bending damage load/times over deadweight
≥1.5
≥1.5
≥1.5
≥1.5
≥1.5
≥1.5
≥1.5
Compressive strength/Mpa
≥3.5
≥3.5
≥3.5
≥3.5
≥3.5
≥3.5
≥3.5
Softening coefficient
≥0.8
≥0.8
≥0.8
≥0.8
≥0.8
≥0.8
≥0.8
Surface density(kg/m2)
≤70
≤70
≤90
≤90
≤110
≤110
≤110
Moisture rate (%)
≤12/10/8
Drying shrinkage alue(mm/m)
≤0.6
≤0.6
≤0.6
≤0.6
≤0.6
≤0.6
≤0.6
Hang force(N)
≥1000
≥1000
≥1000
≥1000
≥1000
≥1000
≥1000
Sound insulation capacity in the air(dB)
≥30
≥30
≥35
≥35
≥40
≥40
≥40
Fire endurance (h)
≥1
≥1
≥1
≥1
≥1
≥1
≥1
Heat transfer coefficient(w/m2.k)
_
_
_
_
≤2.0
≤2.0
≤2.0
Inner radiation index
≤1
≤1
≤1
≤1
≤1
≤1
≤1
Outer radiation index
≤1
≤1
≤1
≤1
≤1
≤1
≤1
Frost resistance(shall show no visible cracks and surface without change)
_
_
shall show no visible cracks and surface without change
The combustion properties of (A1 / A2)
_
_
A1 or A2


Types:

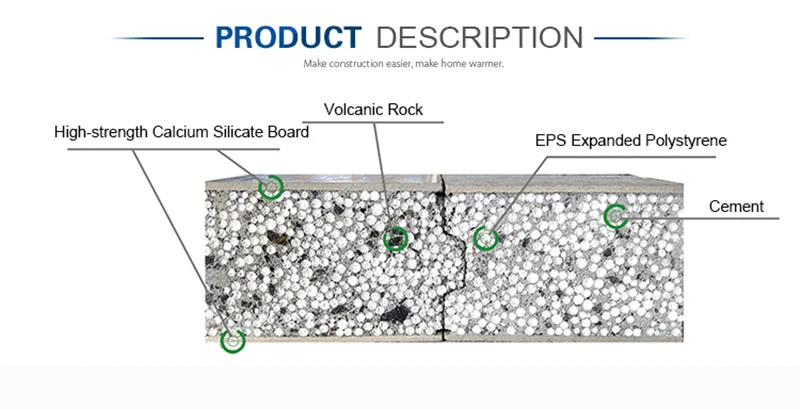

1) Light weight EPS sandwich panel(with face board and without face board)
2) Ceramiste sandwich wall panel (with face board and without face board)
3) Perlite sandwich wall panel (with face board and without face board)

Application:

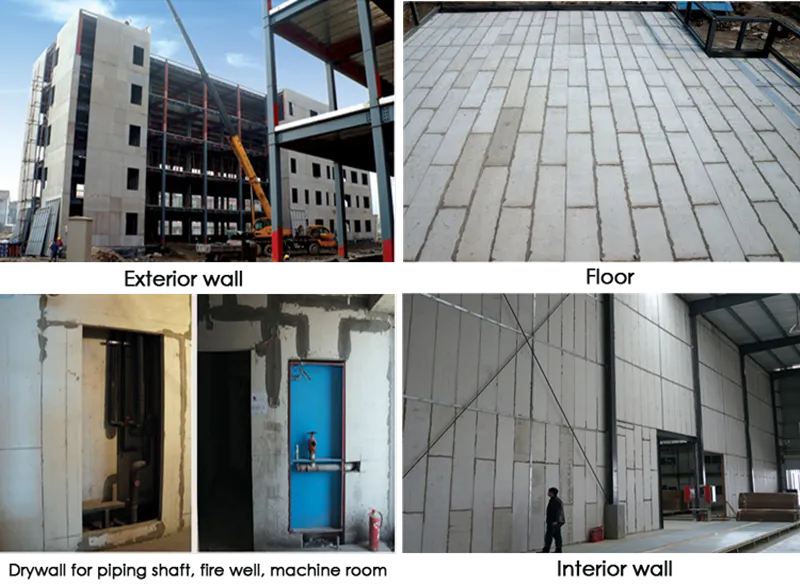

Interior wall, exterior wall,roof and floor on steel or concrete structure. For various buildings, additions or renovations.

Our Factory:

https://site-1306369054.file.myqcloud.com/5067048963835614/2021/05/60a1dcfb98177.jpg?imageMogr2/format/webp/auto-orient

Certifications:

Company Information:

Service:
1. Customized design is available OEM ODM are welcome.
2.Special discount can be offered with large quantity.
3.Reply your enquiry in 24 working hours.
4.Expericenced staffs will answer all your questions in professional and fluent English.
5.Exclusive unique solution can be proof provided by our well- trand and professional engineers.


Packing:
We use excellent packing to protect goods safety to arrive to your hands, usually include Pearl
cotton, Carton/Wooden Box.

Delivery:
1.We advise you use International express like DHL /TNT /FedEx /UPS /EMS to carry sample order,
and bulk order use AIR transport or by sea.
2.We have professional freight forwarder in International express, AIR transport and sea transport
ation, will help customer efficiently save shipping cost/shipping time/safety shipping, then send
goods to you.
3.Shipping ways always according to your needs, we will have detailed communicate with custm-
er before delivery, we will send you tracking information and pay attention to the transportion
from goods leave factory until arrive to your appoint address.

Payment Terms:
1.Many payment method for choice: Bank transfer, L/C, Paypal, Western union etc.
2.Sample order: 100% payment before goods production.
3.Bulk order: 30% Deposit In advance, 70% balance Before Delivery.

  • Place of Origin:Guangzhou,China
  • Brand Name:Xincheng
  • Model Number:XC-ECP002
  • Panel Material:Metal
  • Type:Other; EPS Sandwich Panels
