Rock Wool Insulated Sandwich Panel

Model NO.
XC-RWSPS001
Price:
US $ 9.50-13.50 / square meters
Delivery:
EXW,FOB,C&F,CIF
Minimum order quantity:
300 square meters
Supply Ability:
8000 square meters / Day
Country of Origin:
Guangzhou,China
Stock Time:
10-15 Days
Rock Wool Panels are consist of top and bottom PPGI, Zinc, Aluminum sheet, with high density basalt wool as core insulation. Due to the excellent performance fire resistance and acoustic insulation, rock wool sandwich panels are commonly adopted for fire-resistance and soundproof buildings.
Quantity:
Product Description:

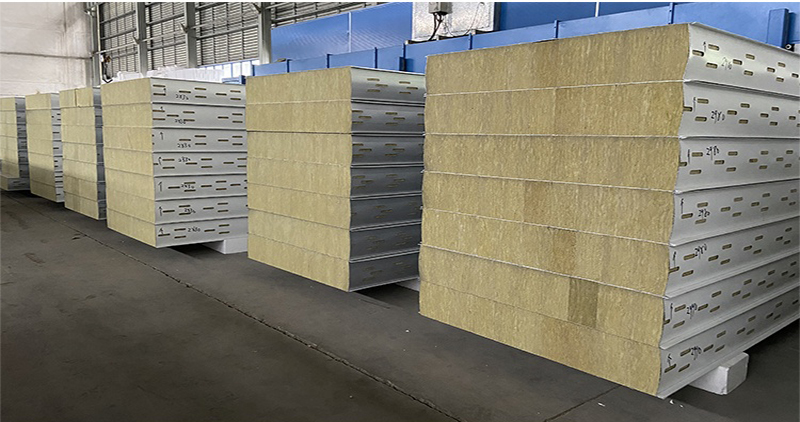

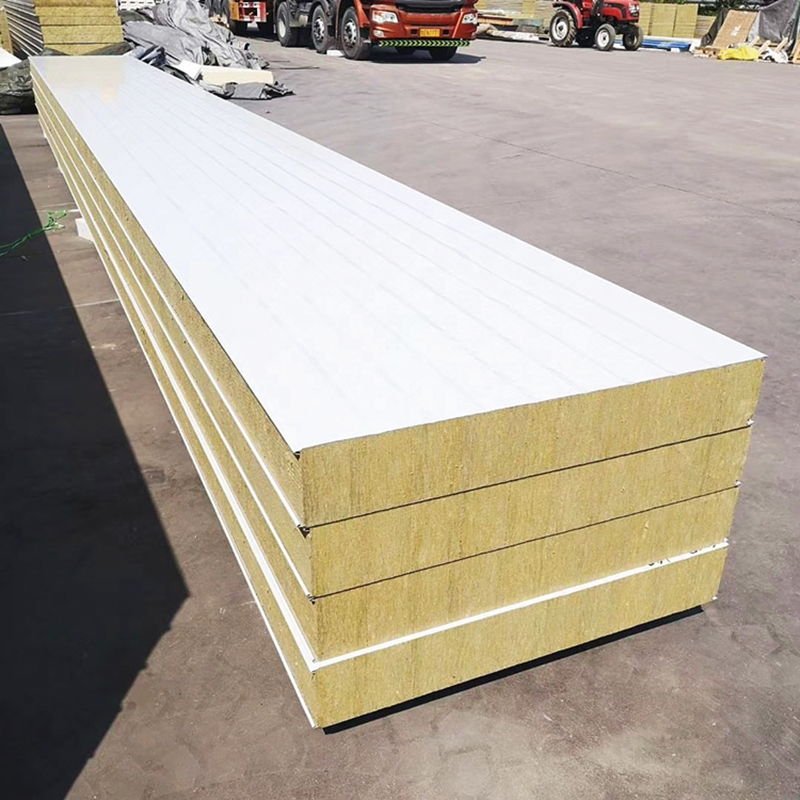

Rock Wool Panels are consist of top and bottom PPGI, Zinc, Aluminum sheet, with high density basalt wool as core insulation. Due to the excellent performance fire resistance and acoustic insulation, rock wool sandwich panels are commonly adopted for fire-resistance and soundproof buildings.
1. Quality Raw Materials: The rock wool sandwich panel adopts the top-rated rock wool and durable steel sheets which have outstanding properties, such as anticorrosion and anti-freezing.
2. Integral Forming: The Italian production line is totally automatic and all the procedures are finished on the production line, such as the filming, the profiling of steel sheets, the cutting of rock wool, the conglutination of the rock wool and steel sheets, the cutting of the finished panel and the stacking.
3. Fireproof and Waterproof: On the basis of non-combustible rock wool, the unique design of polyurethane seal gives the rock wool an extra protection from being destroyed by water.
4. Safe and Insulation: No carcinogenic content is inspected in the rock wool sandwich panel and the thermal conductivity of the rock wool is less than 0.035w/m.k, so it is safe to use rock wool sandwich panels as insulation building materials.
5. Long Sevice Life: Without deliberate destruct ions, the rock wool sandwich panel can be used for over 25 years.
The rock wool applies quality basalt as the raw material and the basalt is definitely non-combustible.Rock wool sandwich panel building envelopesystem can greatly reduce the occurrence of fire accidents.



Specification:

Item

Value

Warranty

More than 5 years

After-sale Service

Online technical support, Onsite Installation, Onsite Training, Onsite Inspection

Project Solution Capability

graphic design, 3D model design, total solution for projects, Cross Categories Consolidation

Application

Workshop

Design Style

Industrial

Place of Origin

China

Brand Name

GZXincheng

Panel Material

metal

Surface texture

Small wave, Flat, V shape ribs,Big rib,reinforcing

Thickness of steel plate

0.3mm-0.8mm

Recommended coating

PVDF,SMP,HDP,PE

Color

RAL

Core material

Rockwool,Glasswool

Thickness

50mm 75mm 100mm 150mm 200mm

Length

Max 11.9m

Width

950,1150mm

Usage

factory buildings,workshops,storage,villas,etc.

Advantage

quick installation,waterproof, fireproof, soundproof

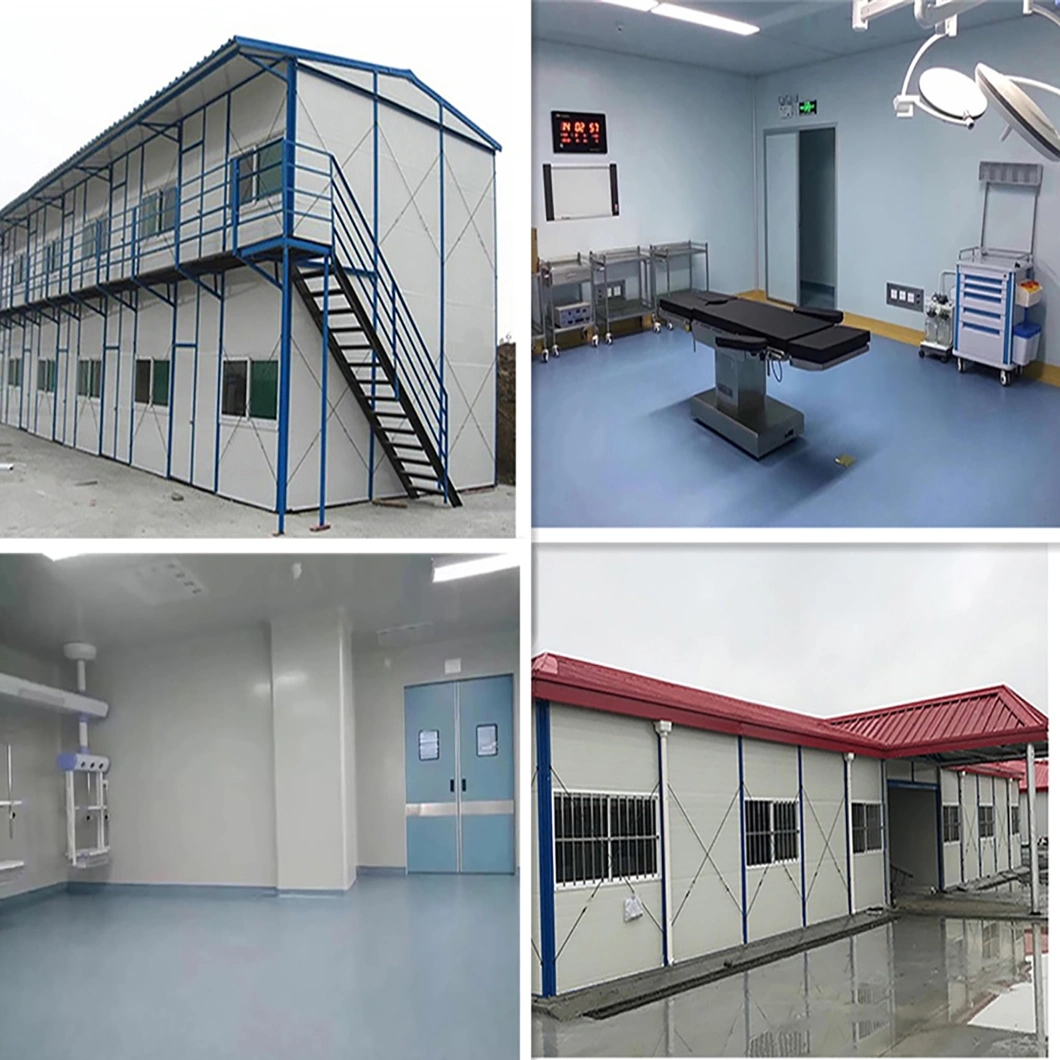

Application:


Certificate :

Exhibition:

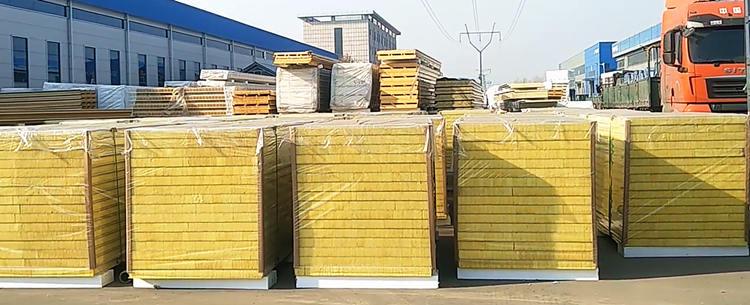

Package and Shipping :



FAQ:


Q1: What's the MOQ?
A1: Our MOQ is 300㎡.

Q2: Can I make other different size?
A2: Yes, custom size is available

Q3:Can you send samples?
A3: Yes, we can send you sample free of charge, but the freight should be on your account.

Q4: What' s the payment terms can you accept?
A4: T/T, L/C, Western Union,Paypal.

Q5: How about the shipment?
A5: By sea,by air and by road.

Q6: How long is the lead time?
A6: About 10-15days.

Q7: Are you a factory or trading company?
A7: We are a professional factory, specialized in manufacturing colored steel sandwich boards


  • Place of Origin:Guangzhou,China
  • Brand Name:GZXincheng
  • Model Number:XC-RWSPS001
  • Panel Material:Metal
