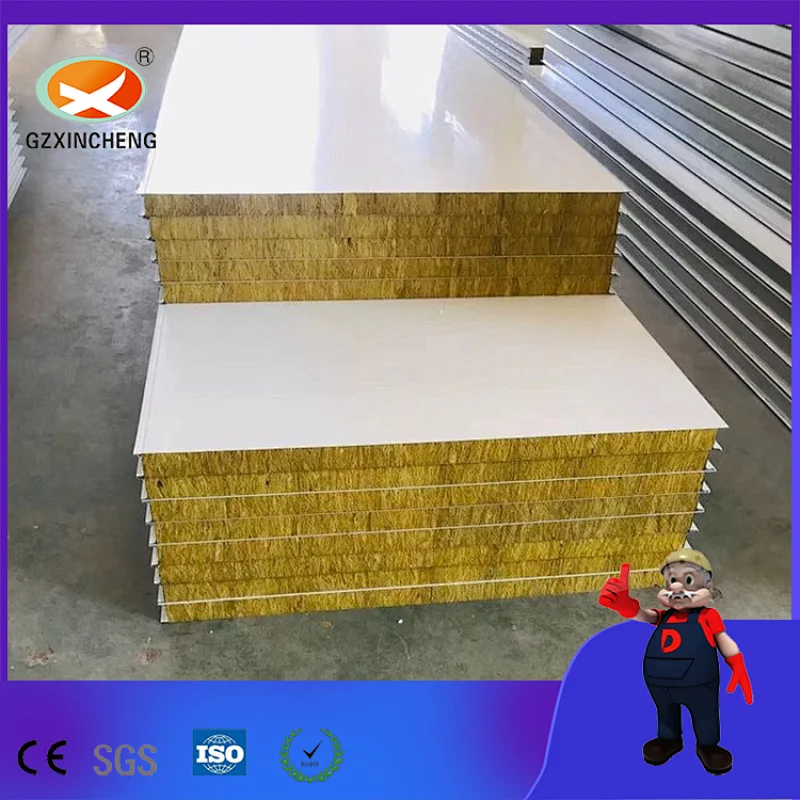

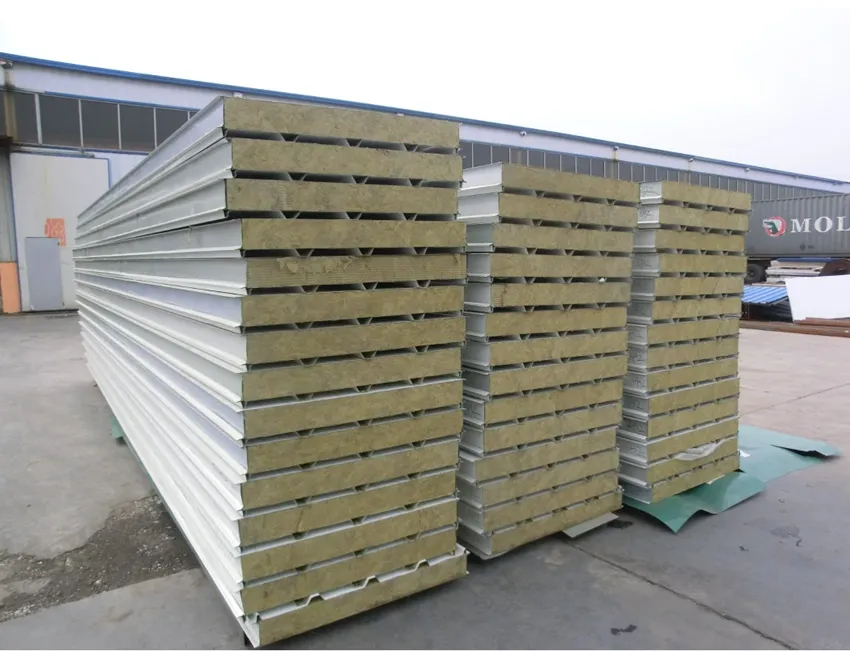

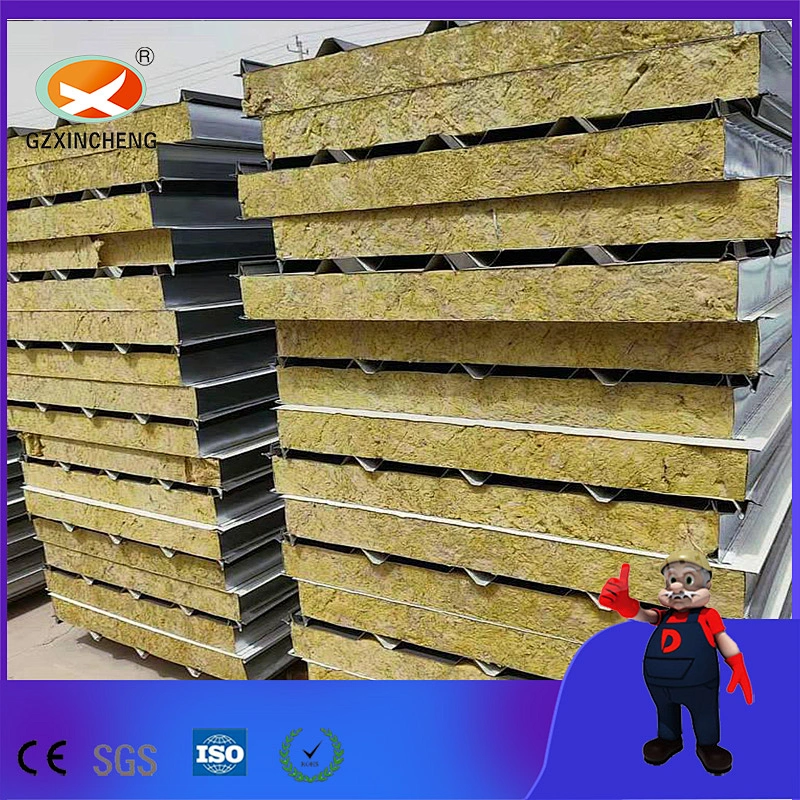

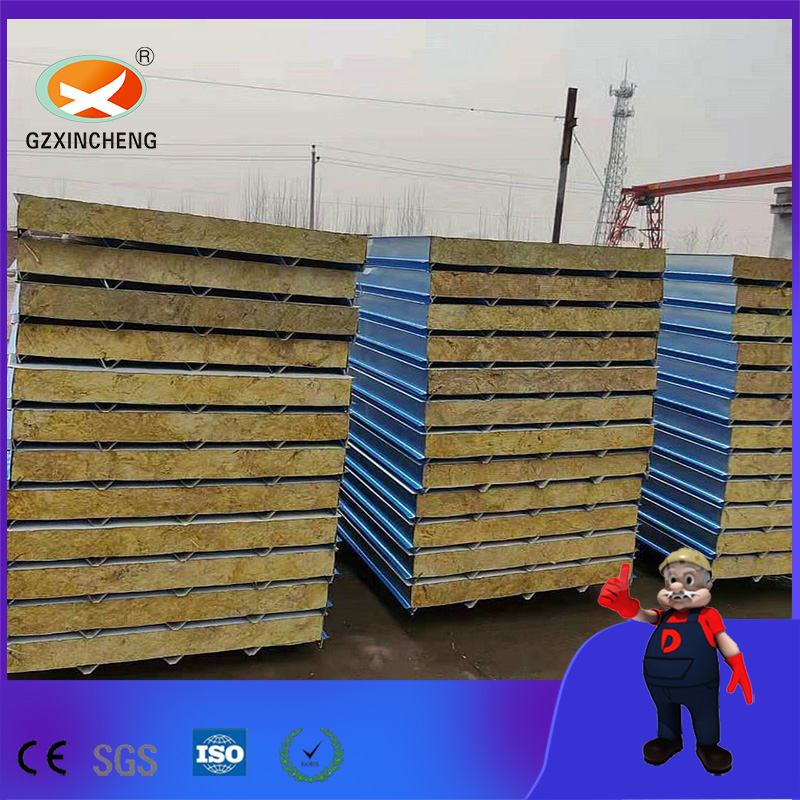

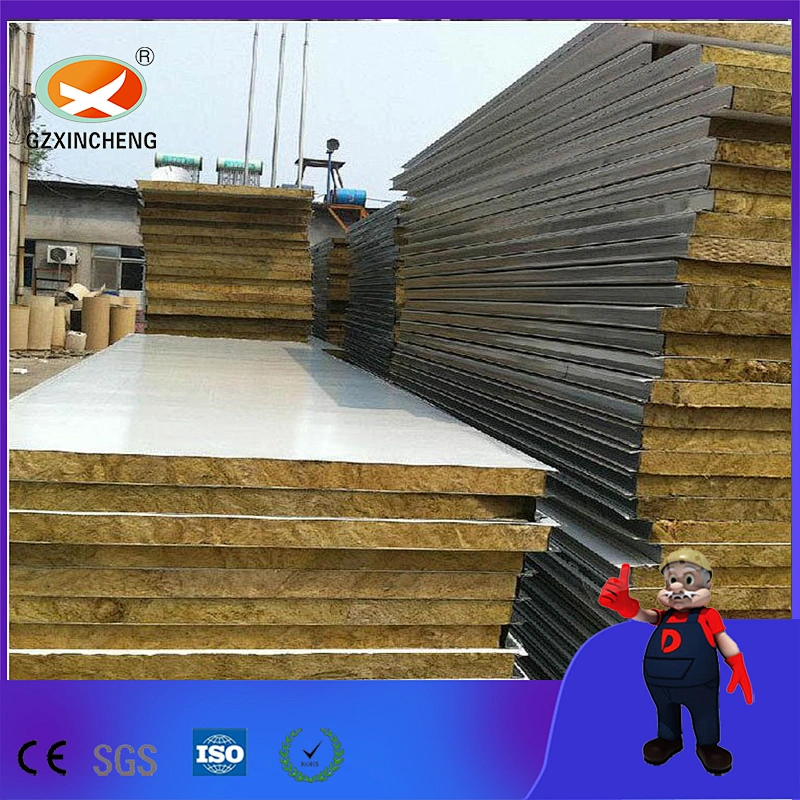

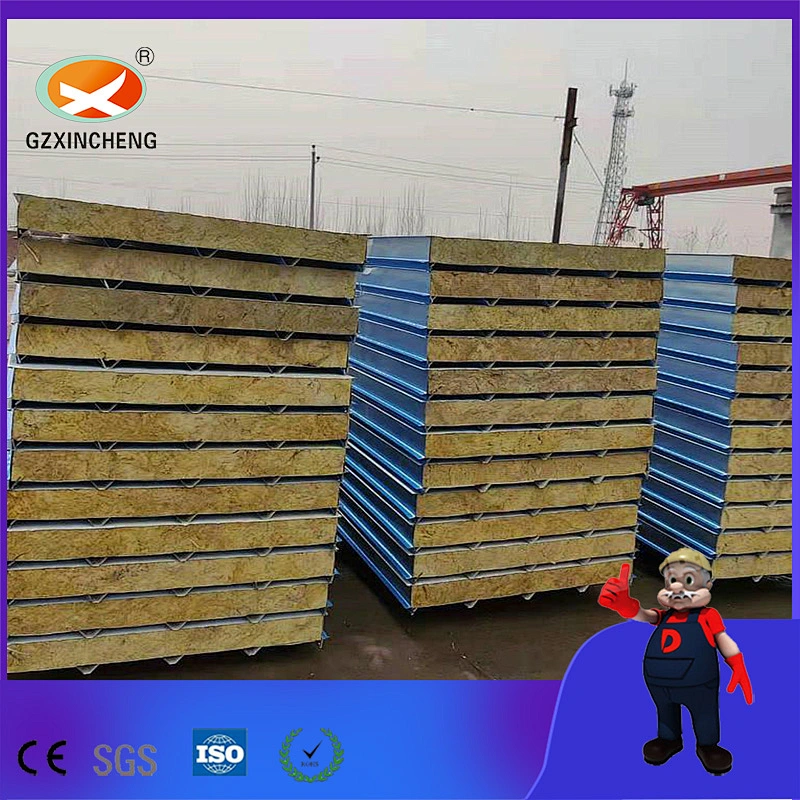

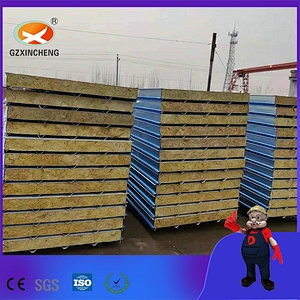

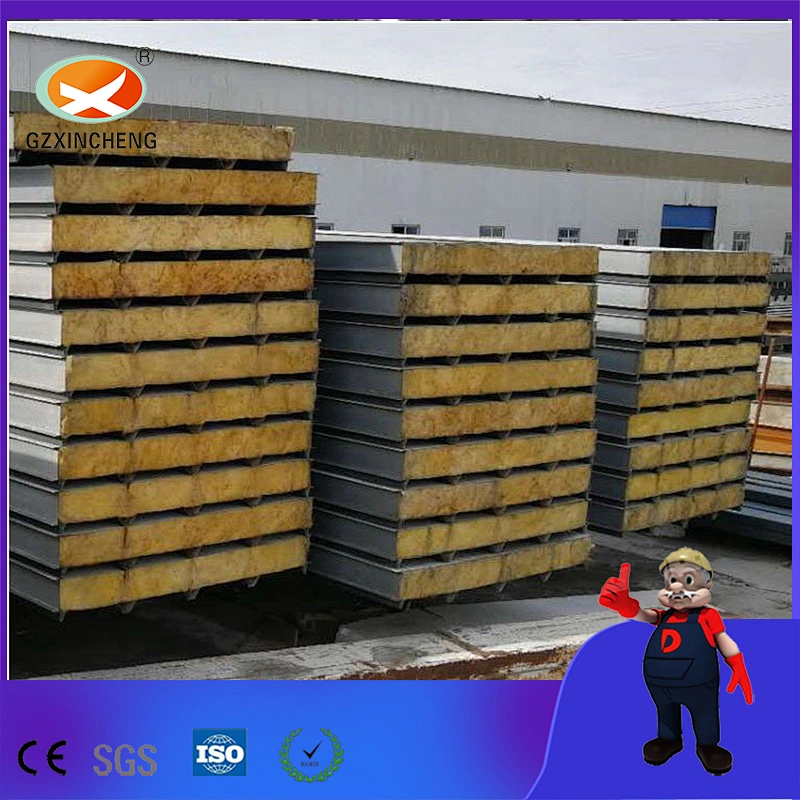

Rock wool sandwich panel is applicable to project with fairly high demand upon fire prevention .The rock wool fiber is vertical to
the colour steel plates.High density strip rock wool crisscross with the length of the colour steel plate .All of this guaranteed the rock
wool sandwich panel have good bearing capacity .The ability of the fireproof of the rock wool sandwich panel is over 900℃.Fire proof :60
minutes .Sound proof :confirming ISO717/82&UNI18270/7.
|Project Solution Capability||Others|
|Place of Origin||GUA|
|Panel Material||Color Steel|
|Core Material||Rock Wool|
|Thickness of Core Material||50mm/75mm/100mm|
|Density of Core Material||60kg/80kg/100kg/120kg|
|Item||Unit||Measure Value||Reference Value|
|Unit Weight (Density)||Kg/m3||≥100-150||≥45|
|Average Fiber Diameter||μm||5||≤7.0 (superior)|
|Shot Content||%||≤4||<12.0 (superior)|
|Heat Conductivity Coefficient||W/m.k||0.041||≤0.046|
|Moisture Rate (weight ratio)||%||<5|
|Rate of Aging & Expansion||%||≤5||Thickness changing rate in 24 hours at temperature 65°C, humidity >95%.|

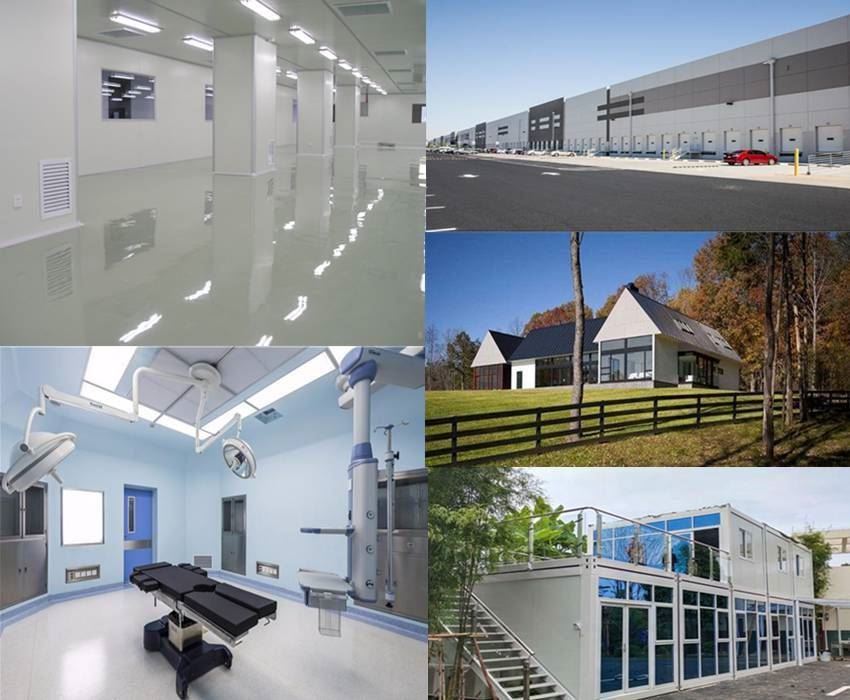

It's widely used in purifying factory ,combined house,building top attachment ,indoor partition,automobile painting room,refrigerator and other project ,
specially suitable for the place where is high requirement in the sound -insulation .
We offer a full range of products to meet different application needs.

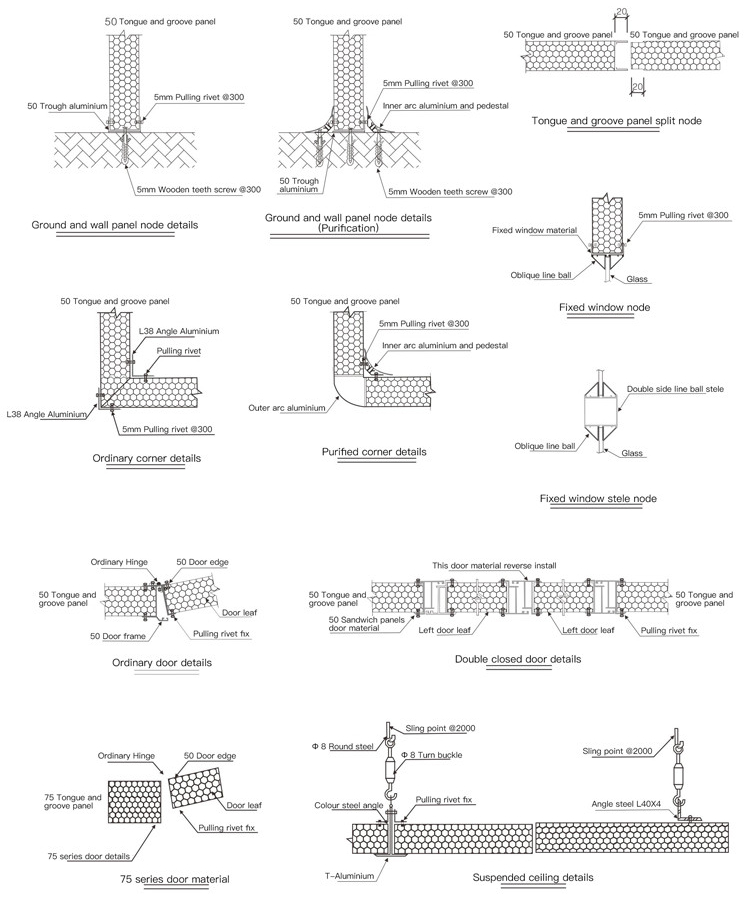

Sandwich Construction Diagtams:
1. Customized design is available OEM ODM are welcome.
2.Special discount can be offered with large quantity.
3.Reply your enquiry in 24 working hours.
4.Expericenced staffs will answer all your questions in professional and fluent English.
5.Exclusive unique solution can be proof provided by our well- trand and professional engineers.

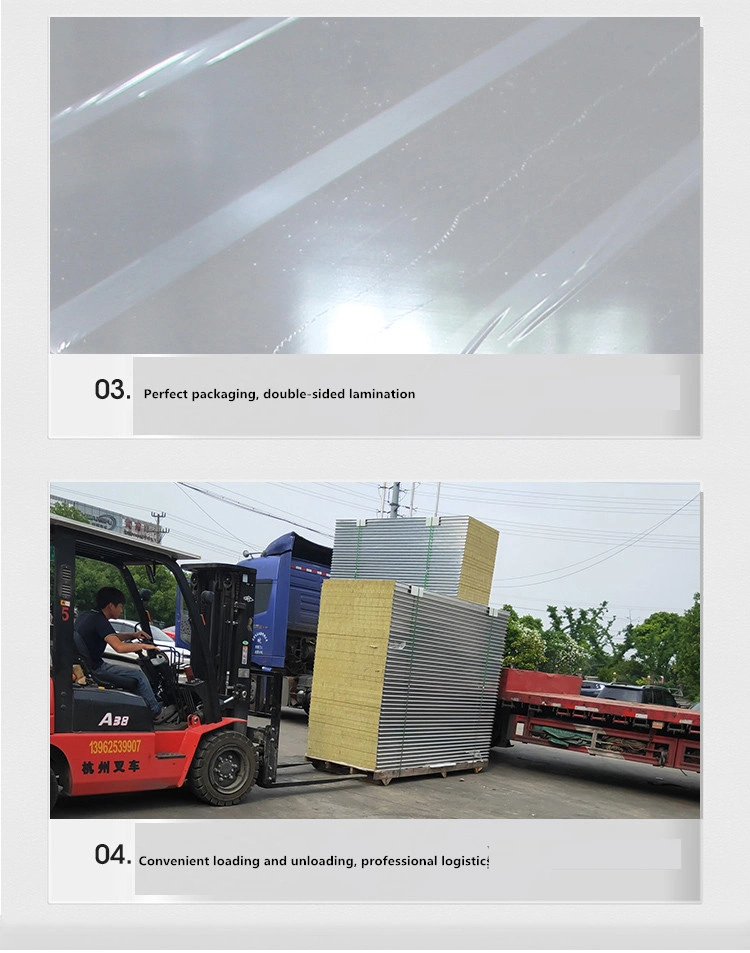

We use excellent packing to protect goods safety to arrive to your hands, usually include Pearl cotton, Carton/Wooden Box.
1.We advise you use International express like DHL /TNT /FedEx /UPS /EMS to carry sample order,
and bulk order use AIR transport or by sea.
2.We have professional freight forwarder in International express, AIR transport and sea transport
ation, will help customer efficiently save shipping cost/shipping time/safety shipping, then sendgoods to you.
3.Shipping ways always according to your needs, we will have detailed communicate with customer before delivery, we will send you tracking information and pay attention to the transportion
from goods leave factory until arrive to your appoint address.
1.Many payment method for choice: Bank transfer, L/C, Paypal, Western union etc.
2.Sample order: 100% payment before goods production.
3.Bulk order: 30% Deposit In advance, 70% balance Before Delivery.
