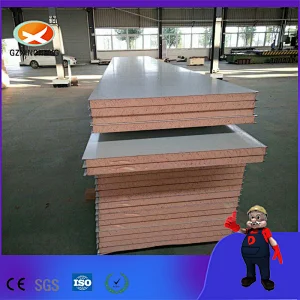

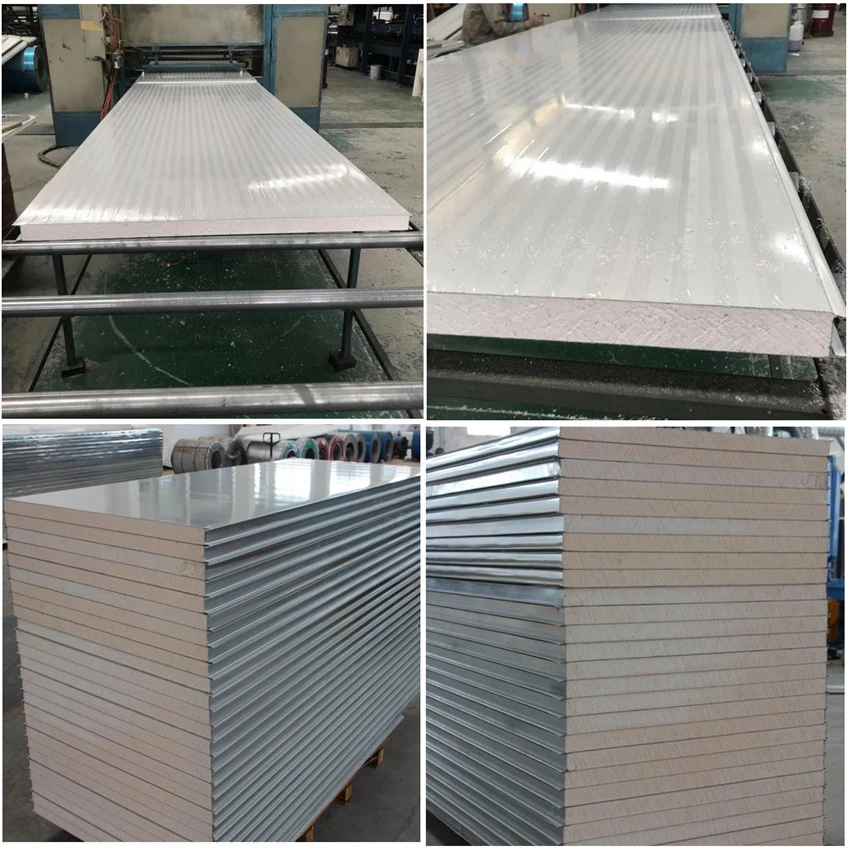

Wall Insulated Waterproof Phenolic Sandwich Panel

Model NO.
XC-PFP008
Price:
US $ 10.00-16.00 / square meters
Delivery:
EXW,FOB,C&F,CIF
Minimum order quantity:
300 square meters
Supply Ability:
4000 square meters / Day
Country of Origin:
Guangzhou ,China
Stock Time:
15 Days
Glass Magnesium Rock Wool Sandwich Panel is the best sandwich board for hospital room.
Quantity:

Phenolic sandwich panel is an excellent alternative to traditional galvanized Iron (sheet metal) duct workand it is ideal for specifications where space or weight is restricted.

Be used to make the air conditioning heat preservation ventilating duct's material,it widely uses in market,hospital,supermarket, stadium, hotel, workshop, guesthouse, airport, pure project food store, and so on.

NameWall Insulated Waterproof Phenolic Sandwich Panel
Effective width

1150(wall panel)

960(roof panel)

LengthAs per requirement considering the transportation sonstraints
materialsPhenolic Aldehyde, Color steel sheet
StructureUpper and lower layer: Color steel sheet  Middle: Phenolic Aldehyde
ThicknessColor steel sheet: 0.3-1.2mm
Phenolic Aldehyde foam: 50mm 75mm 100mm 125mm 150mm 200mm
The Phenolic Aldehyde density33kg/m3    35kg/m3   40kg/m3  45kg/m3
Steel sheet colorIvory white, off white , sea blue, sky blue, lotus green, Grey brick, marble and wooden grain, bright red, etc…
lifetimeMore than 25 years
AdvantageFireproof
Saving cost in energy
Light weight and easy installation
High standard of thermal insulation
Can be produced rapidly and on demand in the required quantity and length
Can be easily transported to wherever they are needed
Lower cost solution compared to traditional building materials
Durability and long life using
Saves construction and maintenance cost
ApplicationVarious roofs and walls referring to the large size factory buildings, storage, exhibition halls, gymnasiums ,Purifying factory, combined house, etc.

Technical Parameter

ITEM
INDEX
ITEM
INDEX
Conventional thickness
20mm, 25mm, 30mm
Bending strength
≥1.1 MPa
Length/Width (mm)
2000x1200, 3000x1200, 4000x1200
Leakage air volume
≤ 1.2%
Fireproof rating
UL181/ASTM/BS476 PART6&7/A2
Thermal resistance
0.86 m2K/W
Density of core material
60-70kg/m3
Smoke density
≤9, no toxic gas release
Water absorption
≤3.7%
Dimension stability
≤2% (70±2ºC, 48h)
Thermal conductivity
0.019-0.02 W(mK)
Oxygen index
≥45
Heat resistance
-150 ~ +150ºC
Duration of fire resistance
>1.5h
Wind resistance strength
≤1500 Pa
Formaldehyde Emission
≤0.5Mg/L
Compression strength
≥0.18 MPa
Air flow max
15M/s

Product characteristics

• Easy to install, shorten the construction period.

• Protect environment, sandwich structure with antioxidant surfaces.

• Fireproof, meet the National standard, makes building safe.

• Nice appearance.

• Improve air quality

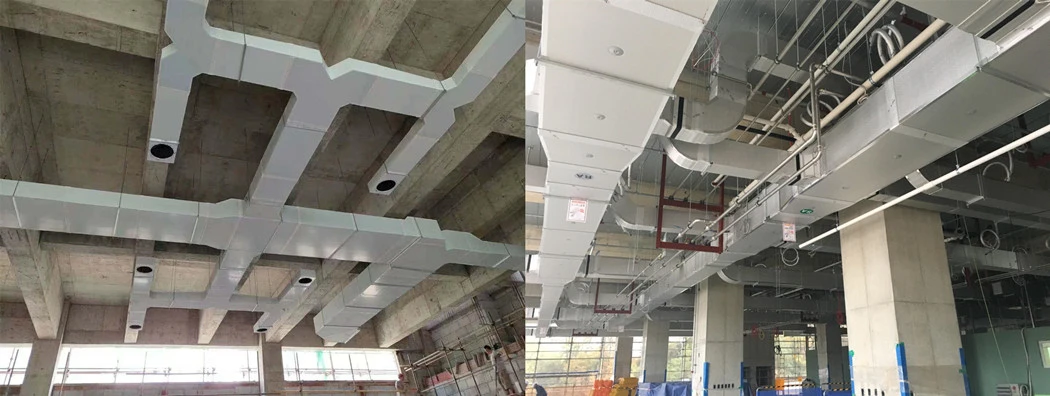

Application

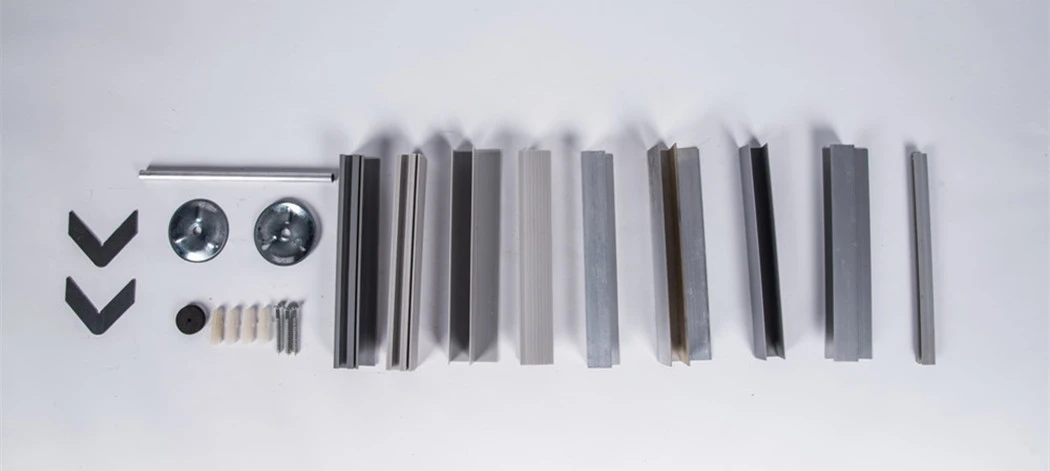

Accessories:

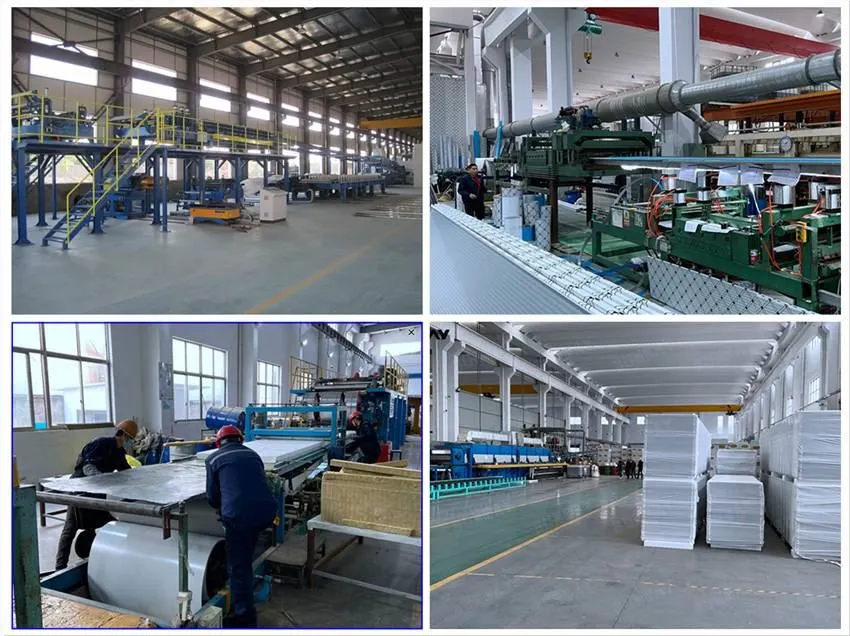

Our Factory:

Certifications:

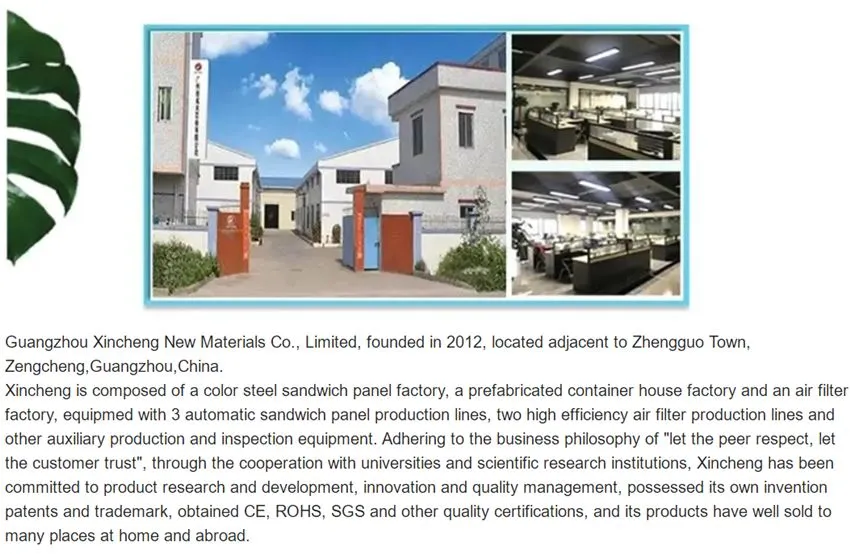

About Us:

Service:
1. Customized design is available OEM ODM are welcome.
2.Special discount can be offered with large quantity.
3.Reply your enquiry in 24 working hours.
4.Expericenced staffs will answer all your questions in professional and fluent English.
5.Exclusive unique solution can be proof provided by our well- trand and professional engineers.


Packing:
We use excellent packing to protect goods safety to arrive to your hands, usually include Pearl
cotton, Carton/Wooden Box.

Delivery:
1.We advise you use International express like DHL /TNT /FedEx /UPS /EMS to carry sample order,
and bulk order use AIR transport or by sea.
2.We have professional freight forwarder in International express, AIR transport and sea transport
ation, will help customer efficiently save shipping cost/shipping time/safety shipping, then send
goods to you.
3.Shipping ways always according to your needs, we will have detailed communicate with custm-
er before delivery, we will send you tracking information and pay attention to the transportion
from goods leave factory until arrive to your appoint address.


Payment Terms:
1.Many payment method for choice: Bank transfer, L/C, Paypal, Western union etc.
2.Sample order: 100% payment before goods production.
3.Bulk order: 30% Deposit In advance, 70% balance Before Delivery.

  • Place of Origin:Guangzhou ,China
  • Brand Name:GZXincheng
  • Model Number:XC-PFP002
  • Panel Material:Metal
  • Type:Rock Wool Sandwich Panels; Other
