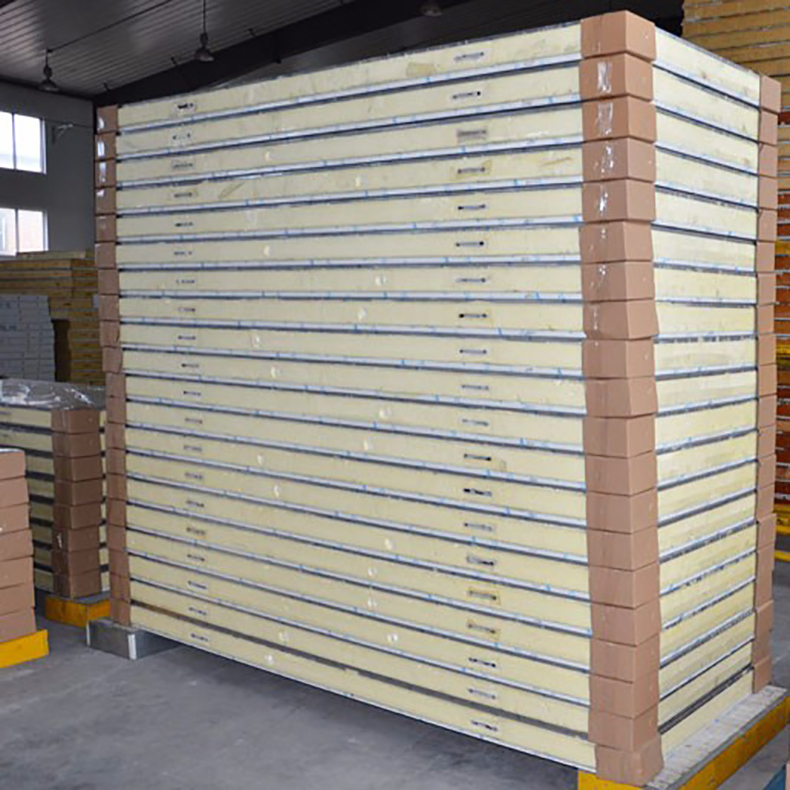

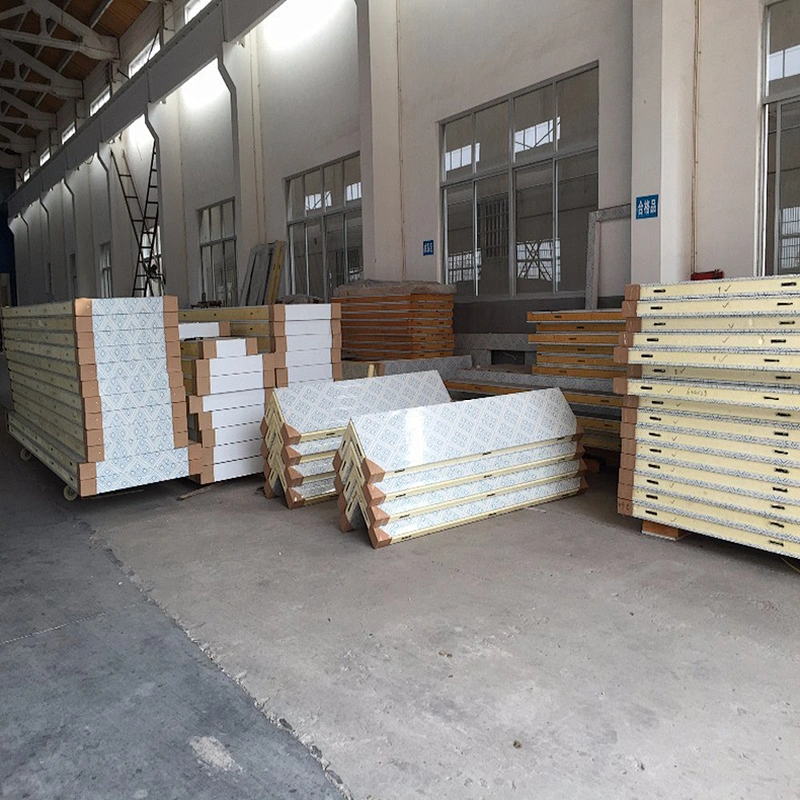

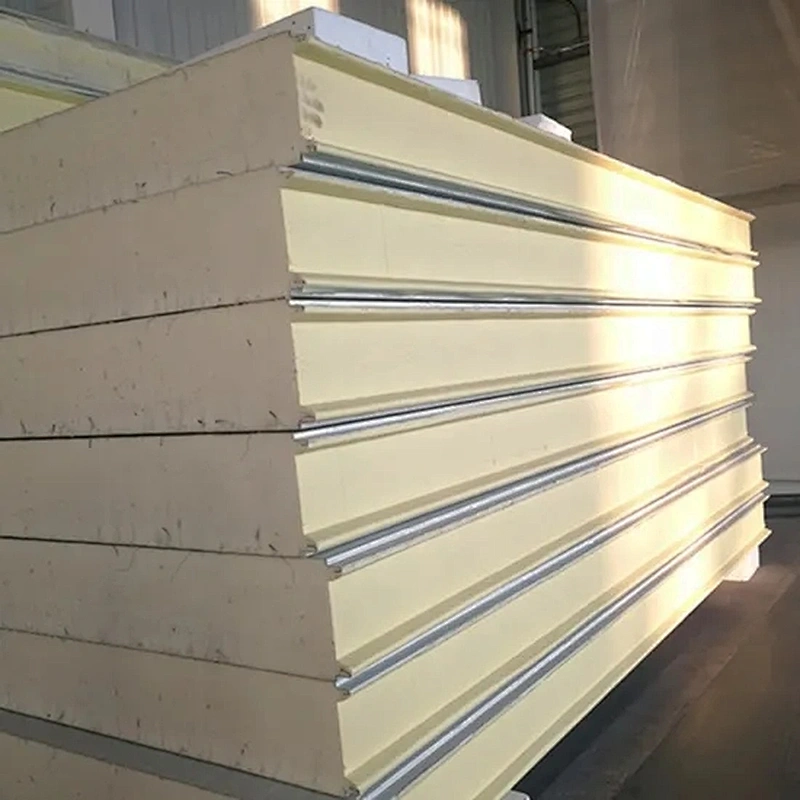

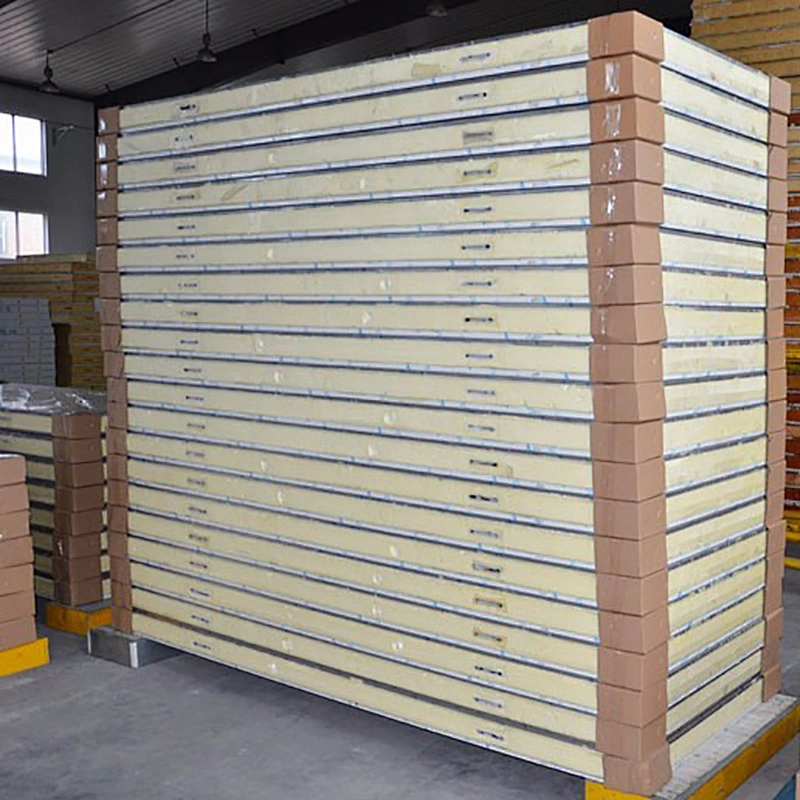

100mm Heat Insulation PU Composite Panel

100mm Heat Insulation PU Composite Panel

Model NO.: XC-PUSP008
Price:: US $ 9.90-18.90 / square meters
Delivery:: EXW，FOB，C&F,CIF
Minimum order quantity:: 300 square meters
Supply Ability:: 7000 square meters / Day
Country of Origin:: Guangzhou,China
Stock Time:: 15 Days

Quantity:

Product Description
Basic Information

Product Introduction :

100 mm heat insulation PU composite panel is is fit for the projects which have serious require of keeping warm. Polyurethane core material is considered to the best material in keeping warm and thermal insulation.
The Polyurethane block material become steady after it froth, then combining with metal plates. The characteristics of this technique are: the polyurethane froth, after this chemical reaction is stable, we cut the polyurethane into pieces which with different thickness. The polyurethane sheet material has stable physical performance, it can combine with pre-painted hot galvanized steel sheets or stainless steel sheet, the surface is smooth and the whole performance is excellent.

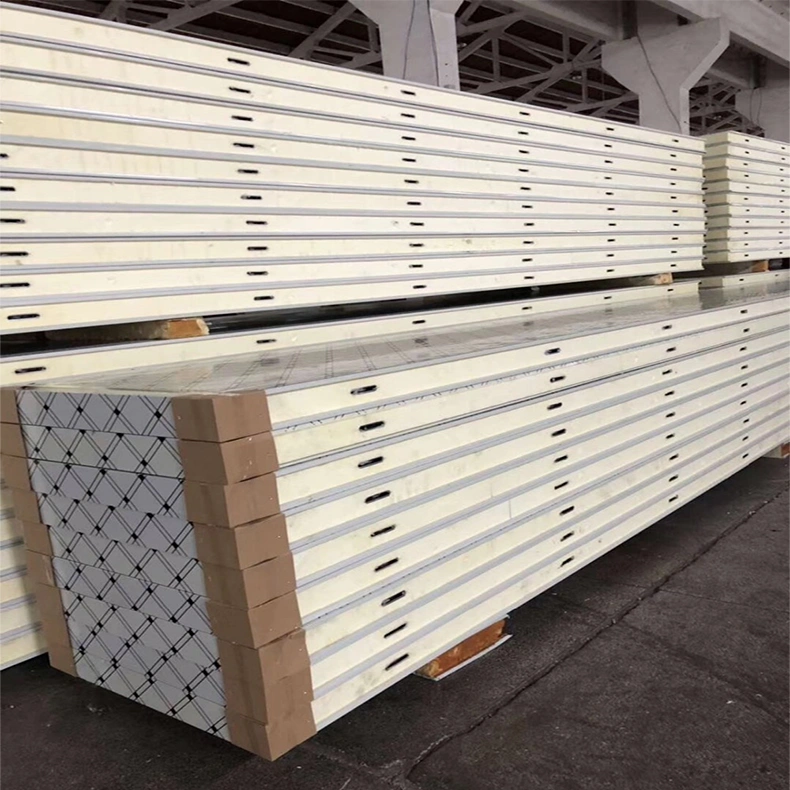

Polyurethane foam is been sandwiched between the two outer skins and hence is known as PU sandwich panels. We are engaged in manufacturing reliable PU sandwich panels in variegated specifications.Those two layers are available in profile with zinc coated, galvanized steel, embossed aluminum, stainless steel or other material sheets.

Specification:

Product Name:	100mm Heat Insulation PU Composite Panel
Density:	35--45 kg/m3
Tempreature Range:	-50℃~+50℃
Heat Transfer Coefficient:	0.022W/(m·k)
Compressive Strength:	0.27Mpa
Water Absorption:	0.17 kg/m3
Bending Strength:	0.41 Mpa
Fireproofing:	B2
Surface Material:	Color Steel Sheet / Stainless Steel Sheet /Non-slip Aluminum Sheet
	Prepainted Galvanized Steel Sheet / Embossed Aluminum Sheet
Interior Material:	High quality polyurethane (PU)

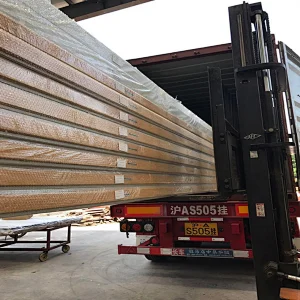

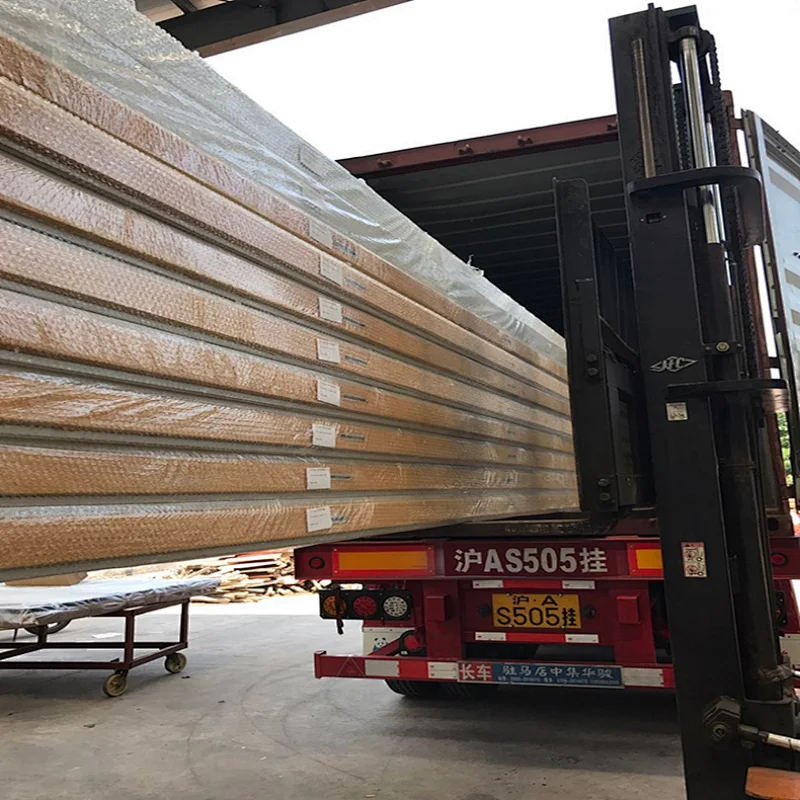

Package:	High quality plastic paper and wrap angle

Features:

1. Heat insulation pu sandwich panel (the abbreviation of Polyurethane is PU sandwich panel) have characteristics of high load intensity, small water-absorptive, and the stability in either low temperature or the high temperature is good, the service life is long, thermal insulation performance is outstanding and so on.

2. Good supporting, heat resistant, sound-insulated, sound absorption, light quality, non-toxic, odorless, green environmental protection.

3. PU freezer sandwich panels can cementation with the steel plates, the cements, the fiberboards, the bricks and many kinds of materials very strongly, in usual situation, it would not fall off and still strengthen its thermal insulation and waterproofing effects.

4. The unique produce foaming craft made the products have exquisite and even abscesses, the Thermal conductivity is low, the size stability is good, is very suitable for both of the low pressure and the high pressure construction.
