Polyurethan Sandwich Panel for Refrigerated Warehouse

Polyurethan Sandwich Panel for Refrigerated Warehouse

Model NO.: XC-PUSP009
Price:: US $ 16.00-25.00 / square meters
Delivery:: EXW,FOB,C&F ,CIF
Minimum order quantity:: 300 square meters
Supply Ability:: 4500 square meters / Day
Country of Origin:: Guangzhou ,China
Stock Time:: 15 Days

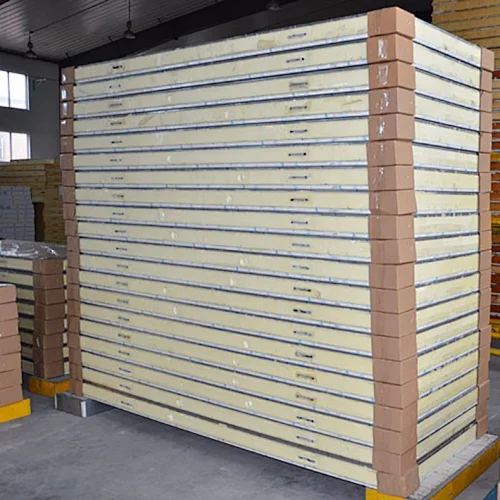

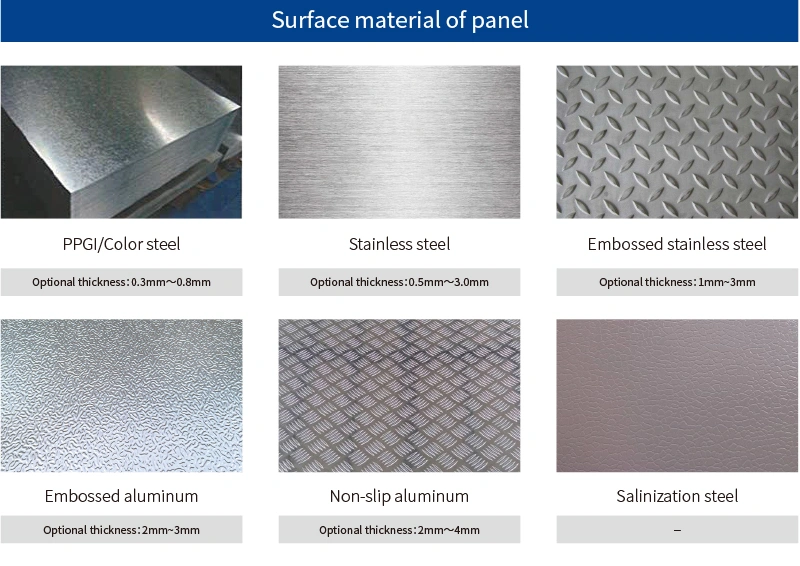

Taking polyurethane with excellent insulation performance as core material and pre-painted galvanized iron (PPGI/color steel), 304 stainless steel or aluminum as external material, PU sandwich panel can reduce the heat conduction due to difference between internal and external temperature to achieve maximum efficiency of freezing and refrigeration system.

Quantity:

Product Introduction:

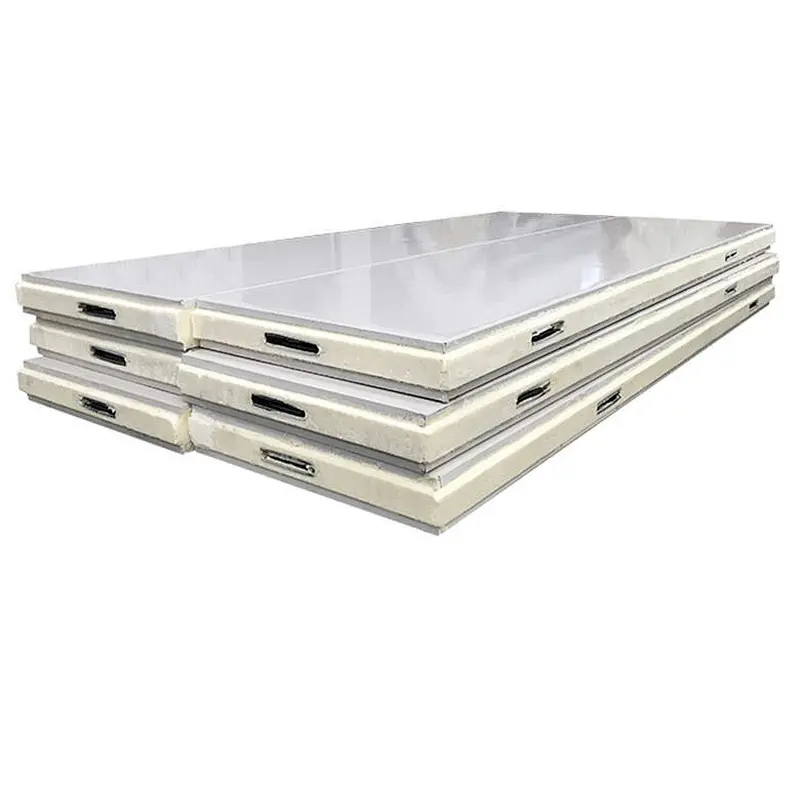

Cam-lock type PU sandwich panel is connected by cam-lock, it is easy to install, and has advantages of fire resistance, high compressive strength, good sealing, and etc. It is suit for temperature of -50°C to +100°C, and nonperishable.

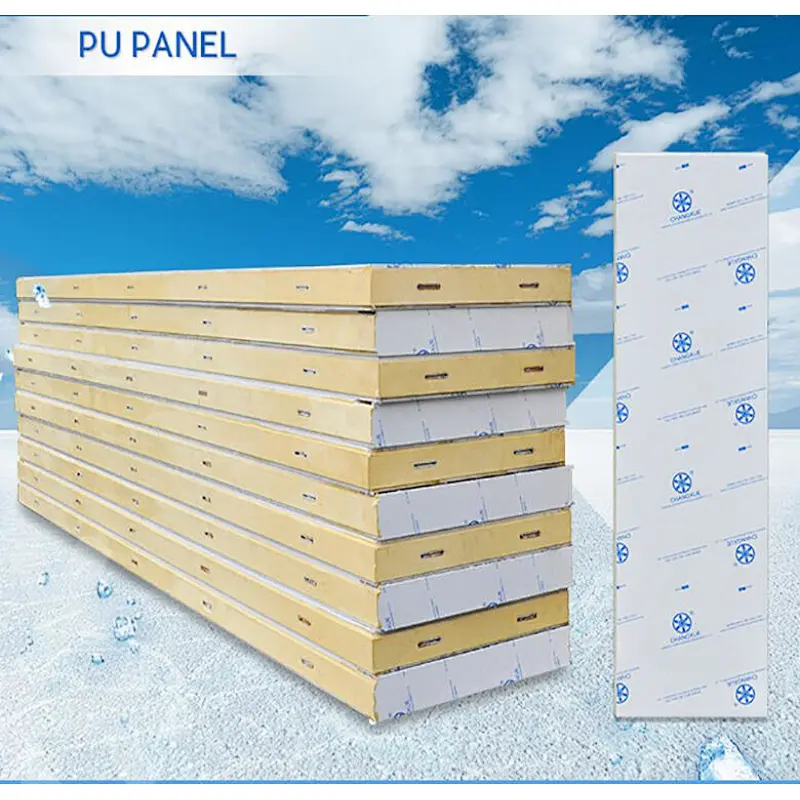

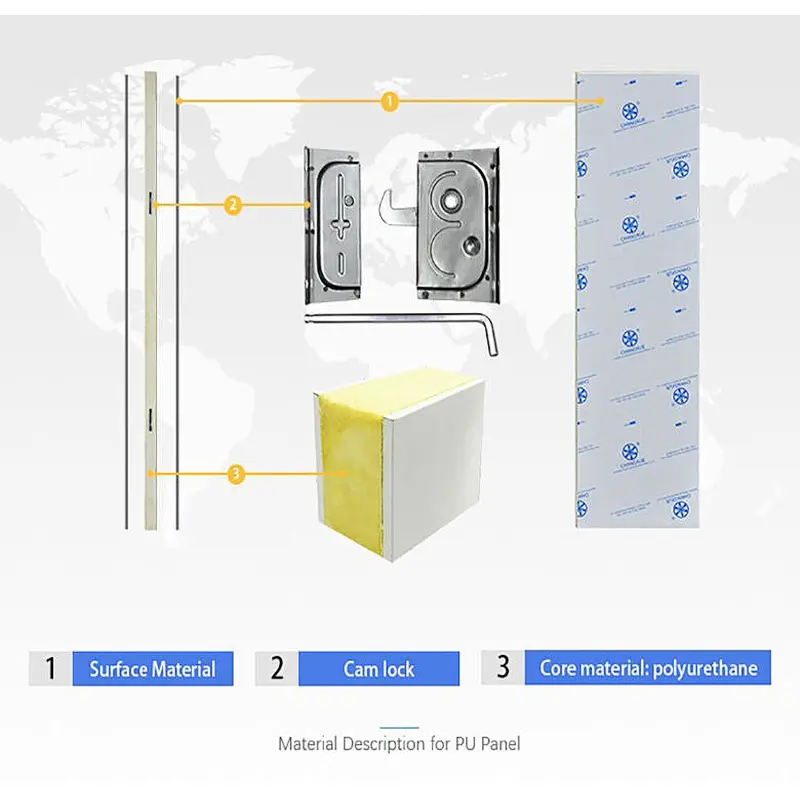

PU panel structure

Size of PU sandwich panel

Width : 960mm

Length : can be customized ,we suggest to produce length of 2900mm,5900mm or 11800mm, to suit the shipping container of 20GP, 40GP or 40HQ.

Thickness : 50mm --200mm

Different applicable temperature with different thickness of PU panel

Thickness of PU panel		Applicable temperature
50mm		Temperature 5°C or above
75mm		Temperature -5°C or above
100mm		Temperature -15°C or above
120mm		Temperature -25°C or above
150mm		Temperature -35°C or above
180mm		Temperature -40°C or above
200mm		Temperature -45°C or above

Installation

Step 1:Floor panel
Step 2: Wall panel
Step 3: Ceiling panel

Panels will be connected by cam locks, you just need to lock different panels together, then seal them with sealant to keep sealed.

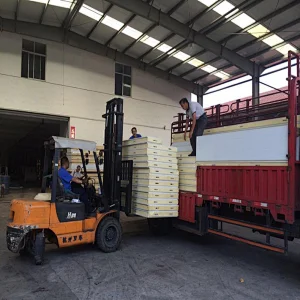

Packing and delivery:

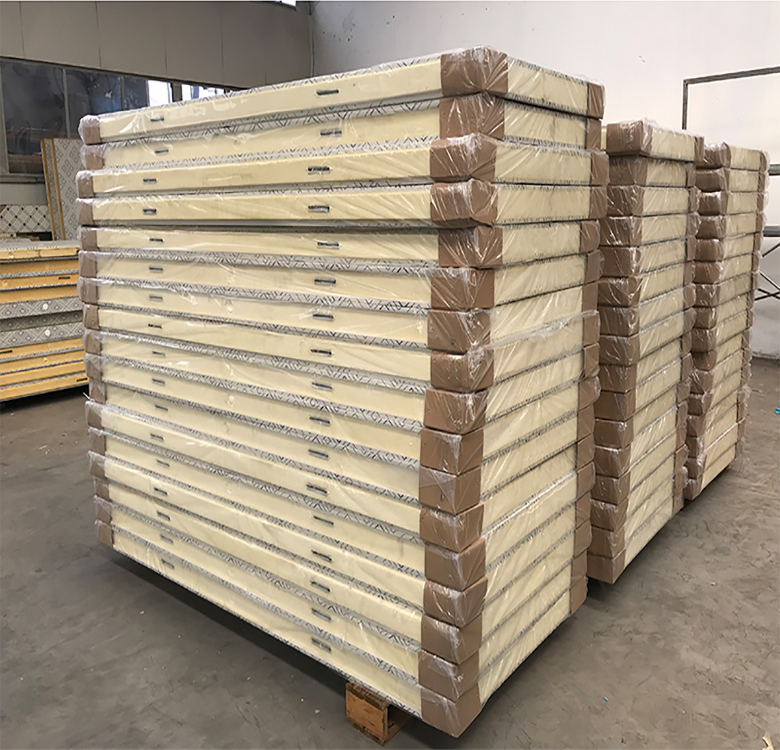

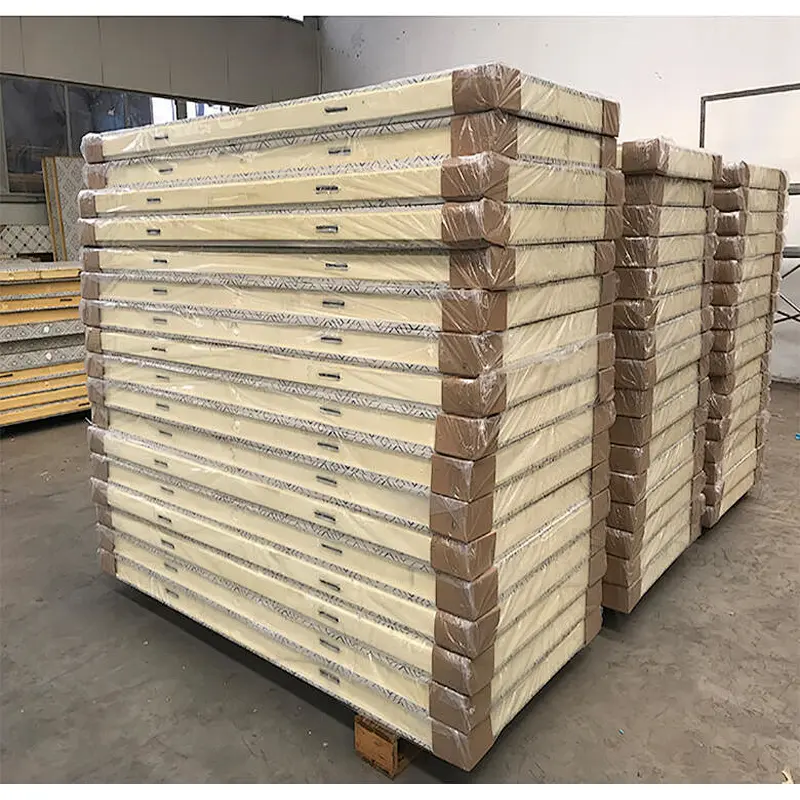

Cold room panels(PU sandwich panel) and doors will be packed by PVC film, refrigeration equipment will be packed by wooden case.

We have professional shipping companies like MSK,CSCL,CNC,COSCO,APL to support us on shipment. Your cargos will be delivered to you safely and quickly. We'll also choose the most suitable way and lowest delivery cost for you.

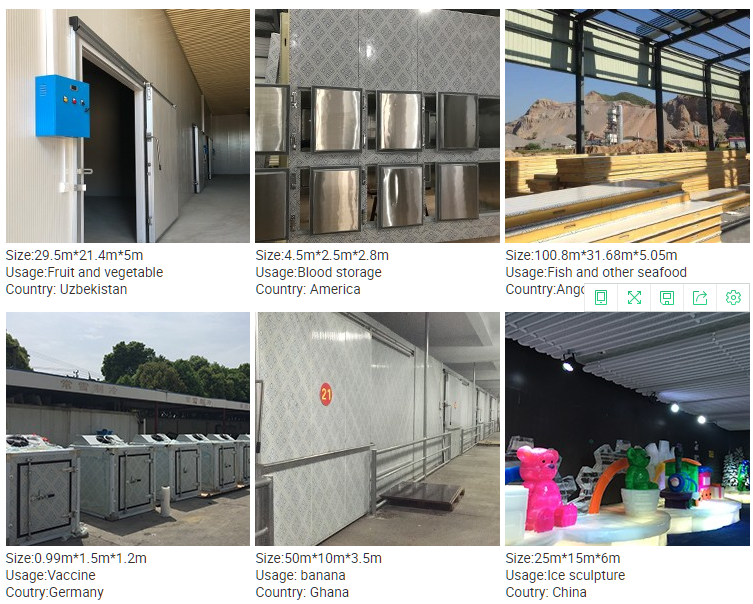

Case :

Exhibition:

Service：

1. Good quality & price.
2. Customization.
3. Door-to-door service under a paid partnership.
4. Visit to our factory.
5. Inspection from your side any time during the production process or before loading.
