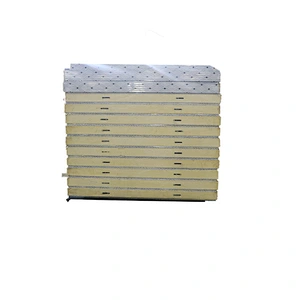

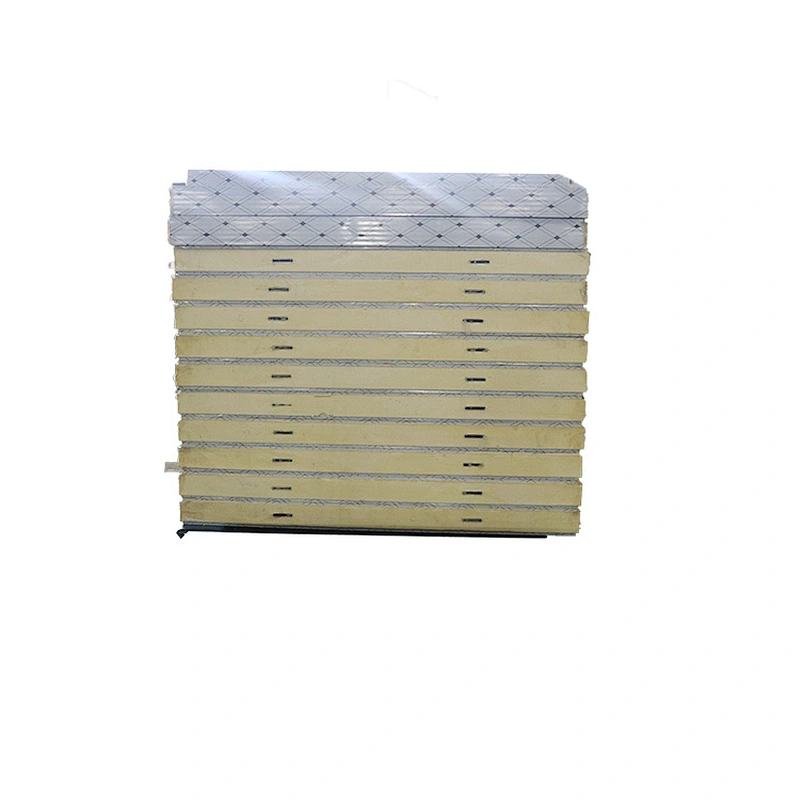

Cold Room Polyurethane Foam Sandwich Panel

Quick Details:

Place of Origin: China                                             Brand Name:GZXincheng

Model Number: PU Sandwich Panel                       Panel Material: metal

Core Material: polyurethane                                  Thickness: 50mm, 75mm, 100mm, 120mm, 150mm

Surface Material: painted steel, stainless steel, aluminum steel                   Temperature Range:-25 ~ 25 degree c

Pu Pael Density: 38~45kg/m3 pu panel                                                    length: customerized

Pu Panel Width: 960m                                                                               Supply Ability：4000 Square Mters/ Day

Product Introduction：

Panels are joined together by means of tongue and groove and locked together by camlock on each side of the panel to ensure air tight joints. Cam-lock design fastener to install cold room tightly and strongly Silica gel are used on the panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool room or moisture inside the PU insulated panel for the best refrigeration and frozen storage result.

Specification :

Core Material	Polyurethane(PU) density 43kg/m3 or above
Surface Material	Color steel,galvanized steel,embossed aluminum,stainless steel
Panel sizes	Standard width is 1000mm.Length can be customized.Nonstandard sizes can be also available according to request.
Panel thickness	Thickness can be 50mm,75mm,100mm,120mm,150mm,200mm,according to different working temperature and outside condition of ambient temperature.

Features :

1.Light weight enough to reduce building expenses. Time can be saved on a building project due to the simple installation. Ideal for special designs because they are easy to form and cut.

2.Wide range of material for your choice: rock wool, polysteyene and polyurethane etc. These material have low heat coefficient and excellent for hot or cold temperature insulation. Both polyester cores of the panels are fire proof and meet the relevant standards



Certificate :

CE,SGS,ISO9001,RoHs

FAQ:

Q1. What are your terms of packing

A: Generally, we pack our goods in bulks or wooden box, suitable for shipping container.

Q2. What is your terms of payment

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What are your terms of delivery

A: EXW, FOB, CFR, CIF.

Q4. How about your delivery time

A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples

A: Yes, we can produce by your samples or technical drawings.

Q6. What is your sample policy A: We can supply the sample if we have ready parts in stock.

Q7. Do you test all your goods before delivery A: Yes, we have 100% test before delivery.

Q8: How do you make our business long-term and good relationship

A1:We keep excellent quality, thoughtful after-sales service and competitive price to ensure our customers’ benefit; A2:We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
