Model NO.
XC-CRRD001
Clean room automatic rolling door are expertly engineered to provide a modern, high-tech entryway into your cleanroom or manufacturing facility
Quantity:
Product Introduction:

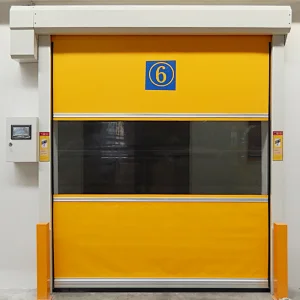

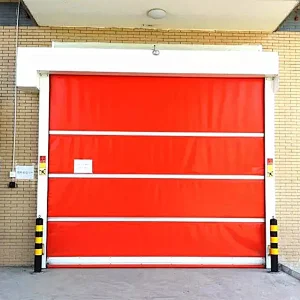

Clean room automatic rolling door are expertly engineered to provide a modern, high-tech entryway into your cleanroom or manufacturing facility. Available in many different colors and six different opening mechanisms, E-Clean automatic doors provide a tight seal that protects your facility from unwanted contamination. Our high-speed automatic roll-up doors can be customized to fit any entryway, and they come equipped with a PVC hermatic substrate gas seal to ensure complete closure against any surface. E-Clean High-Speed Automatic Doors have won the praise of clients in the pharmaceutical, food and beverage, electronics, precision instrument, and other industries.


Advantages of Clean Room Automatic Rolling Door  :

(1) Insulating

(2) Anti-Collision

(3) Insect Protection

(4) Fireproof

(5)Odor Shielding

(6) Attractive Appearance

(7) Customizable

Frame and Cover: High strength aluminum alloy or cold-rolled steel door frame (120 x 130 mm or 140 x 150 mm) built to 6063-T6 Standard; cold-rolled steel door cover
Power Performance: German SEW or Japanese AEW Series Door Brake Motor; 0.75-1.5 Kw rate of work; available in 220 and 380V.
Control Panel: Imported Mitsubishi CPU microcomputer system
Door Speed: Opens @ 0.8-1.5m/s; Closes @ 0.6-1.2 m/s (adjustable)
Door Curtain: 0.8-1.55 mm (thick) high-density polyester fiber surface
Tensile Strength: 5700/5100N/5cm,
Fireproof Rating: German MZD/NBL Standard.
Operating Temperature Range: -10℃ to +70℃
Window: 1.5 mm (thick) soft PVC board available in rectangle or oval shapes
Wind Resistance: 9 m/s (50Pa)

Safety Features: Infrared sensor; air pressure bag; warning light; anti-collision barrier; emergency shut-off switch



(1) Microwave Sensor

Normal (1-3 m range) and industrial (1-5 m range) available with adjustable sensor sensitivity
(2) Magnetic Sensor
Senses vehicles with adjustable range; sensor can be installed underground
(3) Manual Switch
Suitable for doors in crowded areas with high amounts of human traffic; button can be mounted anywhere within a specific range of the door; security access options available
(4) Remote Control
Multiple remote controls can control one or up to 12 separate doors
(5) Manual Pull Rope
Door opens by pulling on a durable rope
(6) Infrared Sensor
Motion-Activated
(7) Card Access
Door activated by swiping authorized card

  • Place of Origin:Guangzhou,China
  • Brand Name:GZXincheng
  • Model Number:XC-CRRD001
  • Frame Material:Steel; Aluminum Alloy
