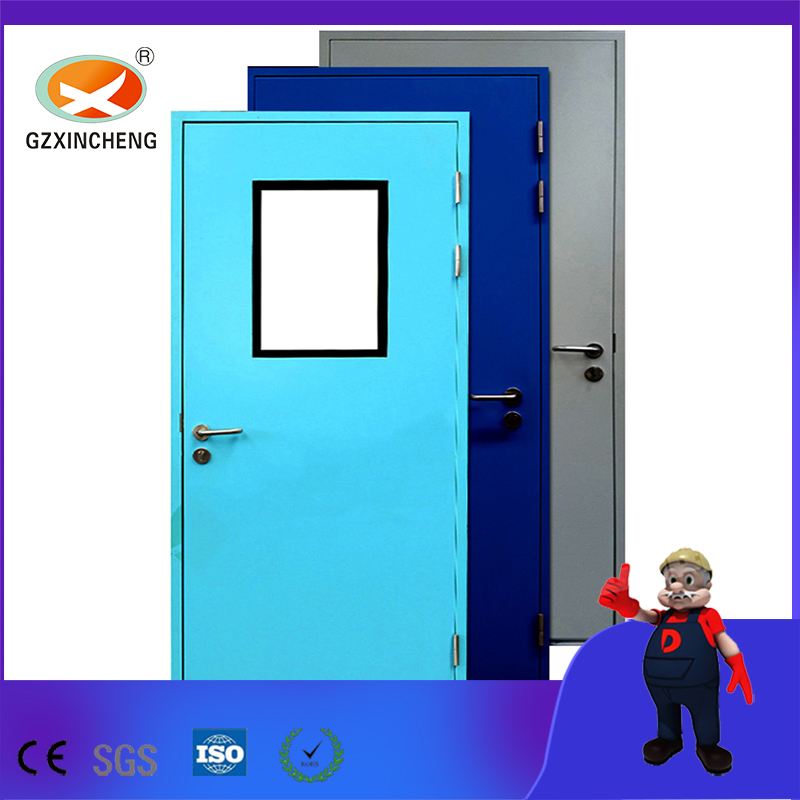

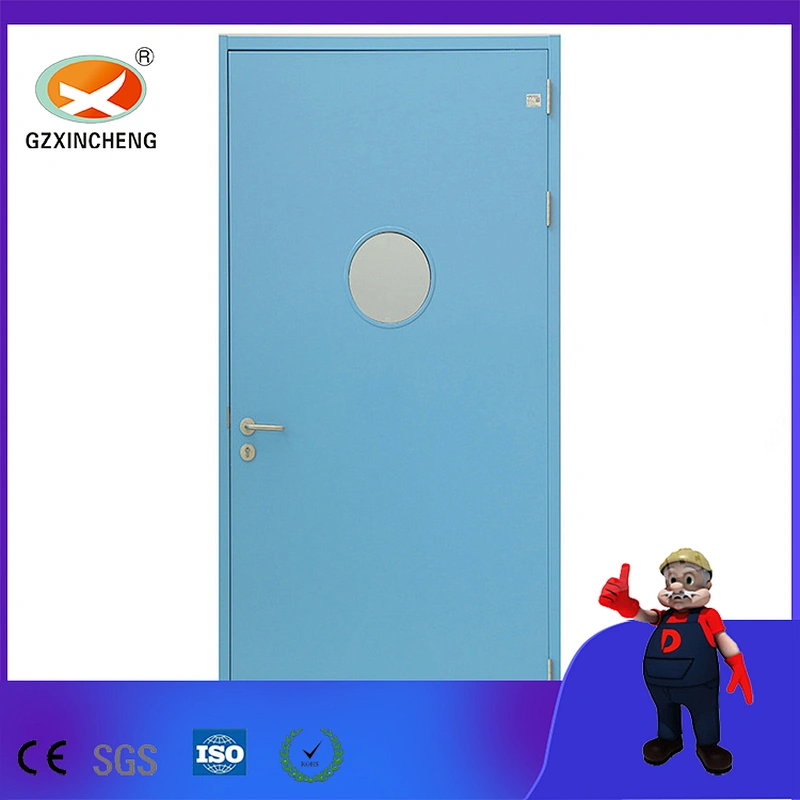

Powder Coated with View Panel Single Clean Room Door

Powder Coated with View Panel Single Clean Room Door

Model NO.: XC-PDW036
Price:: US $ 70.00-400.00 / pieces
Delivery:: EXW,C&F,CIF,FOB
Minimum order quantity:: 5 pieces
Supply Ability:: 300 pieces / Day
Country of Origin:: Guangzhou,China
Stock Time:: 15 Days

Quantity:

Product Description

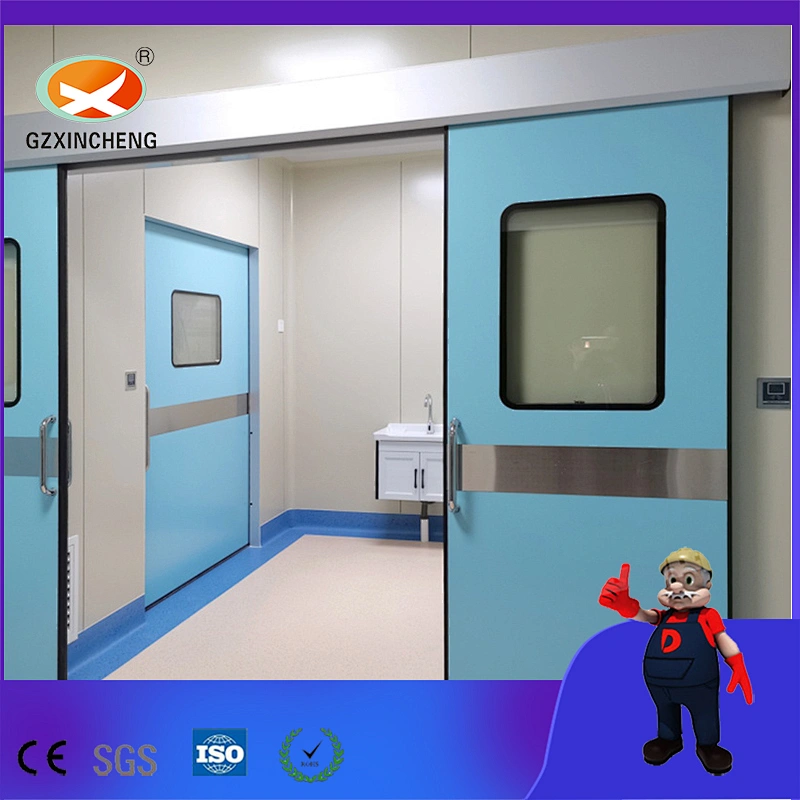

This Door system is widely applied to hospitals, medical centers, clean rooms and electronic factories. We use 304 stainless steel panel with honey comb insert to make clean room door. There are two interts which are paper honeycomb and aluminium honeycomb. In order to prevent dusts, we have added a brush seal on the bottom. The door could be operated with interlock system which is much safer than ordinary types.

Specifications:

Clean room door	Single leaf	Double leaf	Unequal doubel leaf
Width of door/mm	800/900/1000	1200/1500/1800	1200
Height of door/mm	Standard 2100 customized acceptable
Thickness of door leaf/mm	Standard 40/50
Material of door leaf	Spray plate/HPL/Stainless steel
Door frame	Aluminum alloy/colored steel
Door panel filler	Aluminum honeycomb panel/paper honeycomb panel/rockwool
Opening manual	Automatic/sliding/swing
Opening speed	Depends
Wall option	Sandwich panel	Handicraft panel	wall door
Thickness of wall(mm)	50/75/100	50/75/100	customized
Observation window	5mm double layer tempered glass
Size of window	386/586 circular shape or 400*600 rectangular
Types of locking stystem	Leverset lock/Split seriers and more for options
Types of opening control	Clear close system/Hidden close system/Interlocking system/Automatic sliding system
Applications	Operating Theatres/X-Ray theatres/Recovery rooms/High dependency/Pharmacies/Cosmetics/electronics
Note: 1. The dimension,door leaves,color and panel can be customized
2. Gennerally the material of the door plate is galvanized steel with power coating surface treatment or 304 stainless steel.

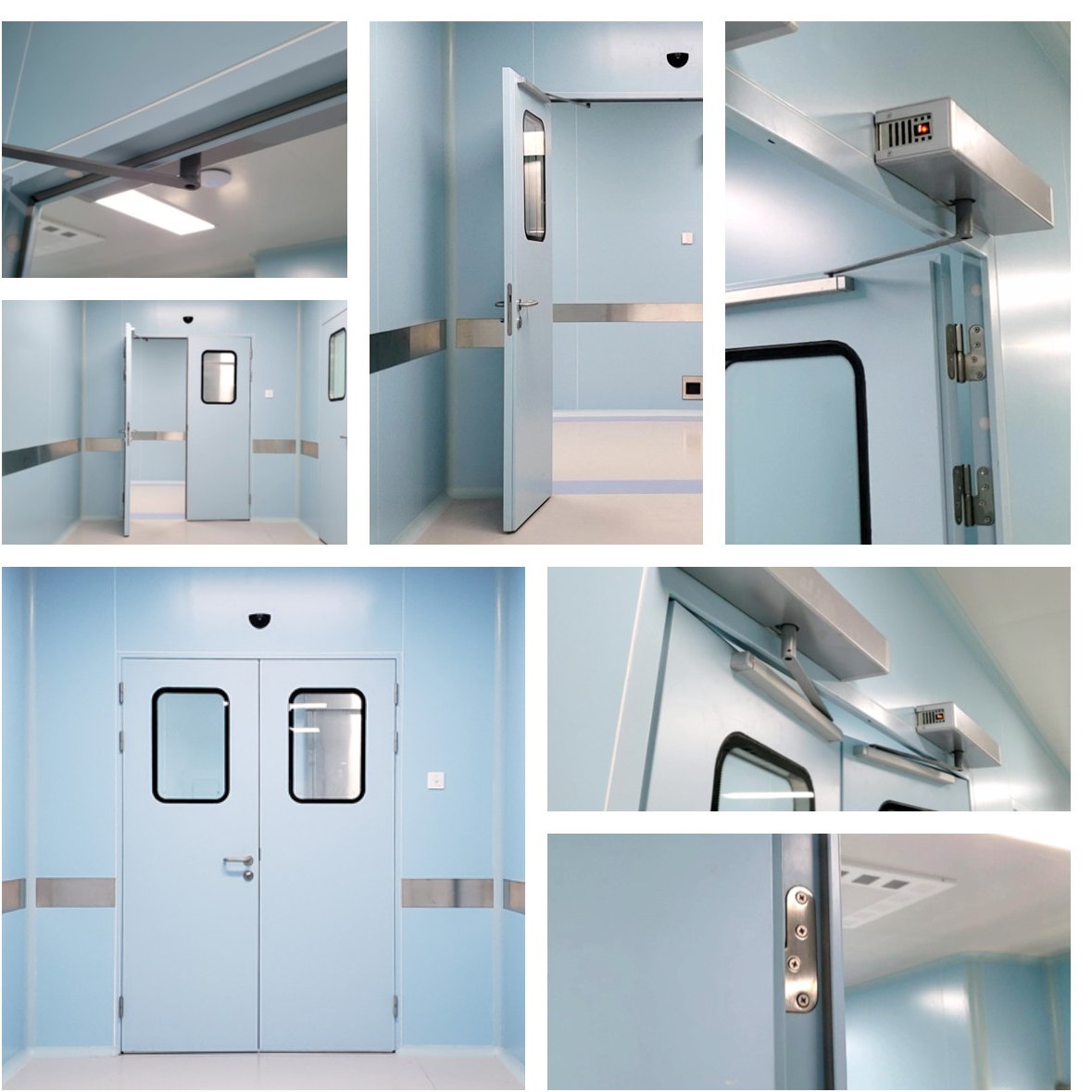

Detailed Pictures:

A	Aluminum Door Frame Profile Aluminium alloy profile, the whole door frame with a smooth transition design,anti-collision, easy to clean.
B	Aluminum Door Leaf Profile Aluminium alloy frame, flat surface.
C	Panel PPGI or HPL,Anti-collision, abrasion resistance, antibacterial.
D	Core material of door leaf Using aluminum honeycomb, the center of which is aluminum hexagon, the honeycomb has no combustible substances, flame retardant, waterproof, moisture-proof, no harmful gas release.
E	Observation window Using double-layer tempered glass, and the window frame and door leaf are integrated.Not easy to fall off, no dead angle, anti-fogging.

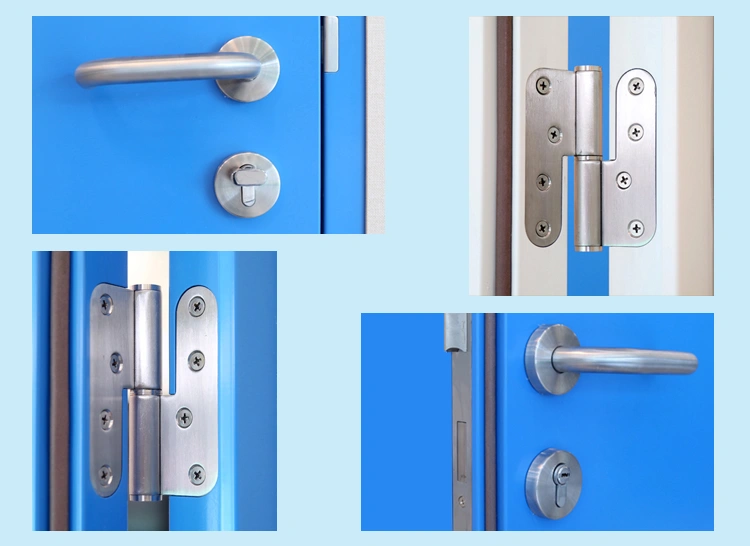

F	Lock Round corner design, anticollision, anti-pinch, can be opened by elbow.
G	Drop seal set Adopt unique double-shrapnel design, sinking smoothly, average strength, mute, good air tightness.
H	Hinges Non-metal powder produced while working, quiet, wear-resistant, easy to clean, firm and beautiful.

Features :

(1) Fire resistant/ Bacteria resistant / Water resistant / Radiation resistant

(2) Airtight, durable, easy to clean, low noise,beautiful appearance

(3) Advanced technology, long service life and stable performance

(4) Patent structure, solid and crashworthy

(5) Intelligent design, easy to install and adjust

(6) Rust-proof and anti-corrosion/Dust-proof and Air tight

(7) Good seal performance /Durable and easy for cleaning

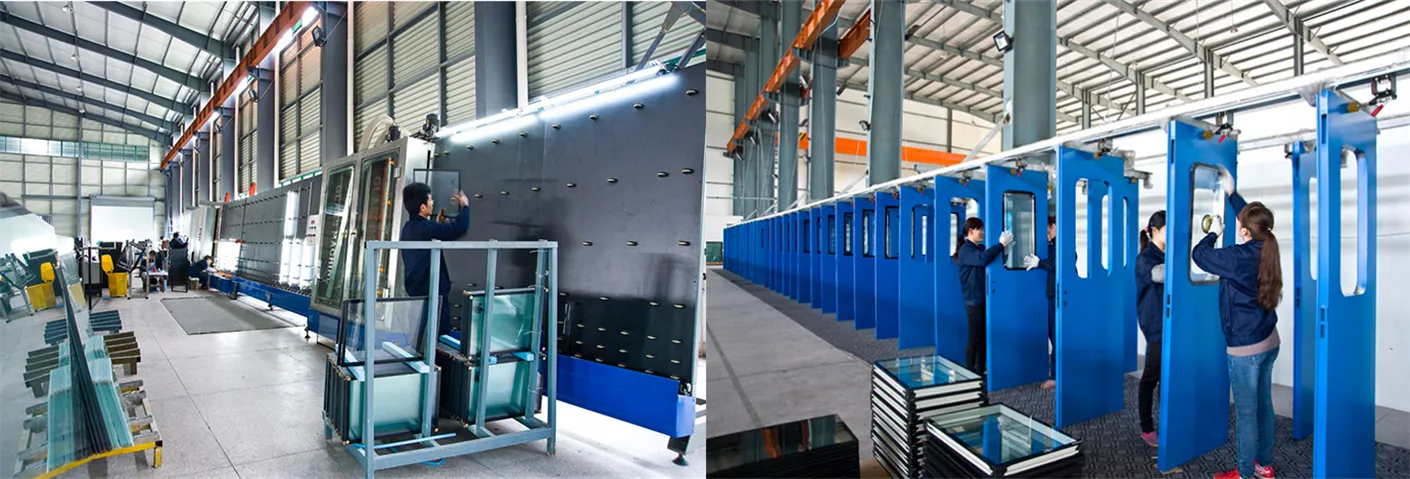

Production Equipment:

About Us:

Certifications:

FAQ:
1. Are you a producer or trader?
We're professional producer, which integrates designing, manufacturing, sales and installation service.
Our factory is located at Guangdong city of China. Welcome to visit us.

2. Do you offer customize service?
Yes, we accept customized orders. The customized content includes: graphic, logo, size, material, colors,
shape, appearance.

3.What's your product quality?
Xincheng Clean has more than 10 years of experience on cleanroom equipments. We provide our products
all over the world through our partners. Now we set up our own overseas department.

4. How to guarantee the safety during shipping?
We pay high attention to packing material & details, provide protection with extra foam and hard cartons,
fragile articles will be clearly identified.

5. What's your business scope?
We specializes in hospital doors, clean room doors and modular operating room manufacturing.
